Exploded View

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

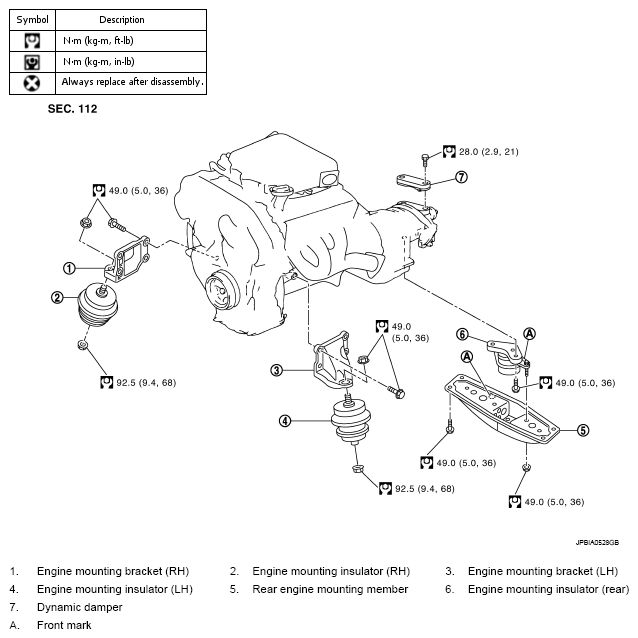

Fig 1: Exploded View Of Engine Mounting (2WD) Replacement Components With Torque Specification

Courtesy of NISSAN MOTOR CO., U.S.A.
