Principle Of Operation
WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
Compressor is not activated.

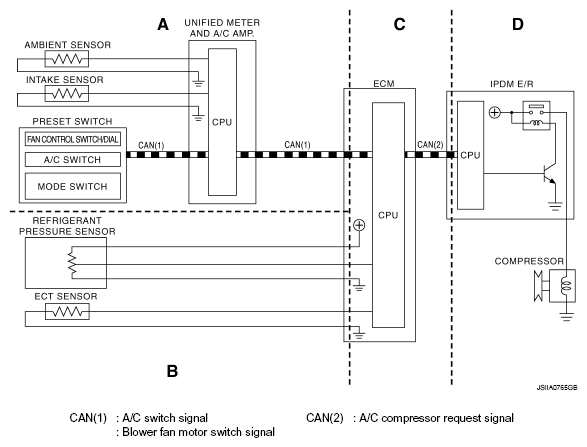

Functional circuit diagram
Functional initial inspection table
FUNCTIONAL INITIAL INSPECTION TABLE
| Location | A | B | C | D | |
|---|---|---|---|---|---|
| CONSULT-III | ECM DATA MONITOR | - | Yes | Yes | - |
| IPDM E/R DATA MONITOR | - | - | Yes | - | |
| AUTO ACTIVE TEST | - | - | - | Yes | |
| Self-diagnosis function (except CAN diagnosis) | Yes | - | - | - | |
