2WD: Exploded View: Removal

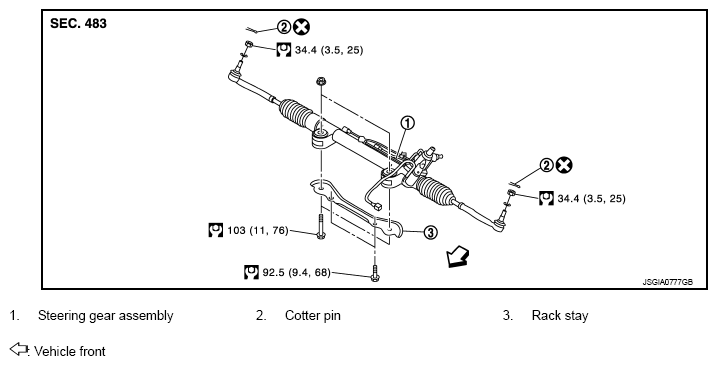

Fig 1: Disassembled View Of Steering Gear And Linkage With Torque Specifications (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
