Wheel Alignment: Adjustment: Toe-In

If toe-in is exceeds the standard value, adjust with adjusting bolt (1) in rear lower link (2).
Toe-In: Refer to "WHEEL ALIGNMENT ".

CAUTION: Be sure to adjust equally on right and left side with adjusting bolt.
- If toe-in is not still within the specification, inspect and replace any damaged or worn suspension parts.
- After toe-in adjustment, adjust neutral position of steering angle sensor. Refer to "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION: SPECIAL REPAIR REQUIREMENT ".

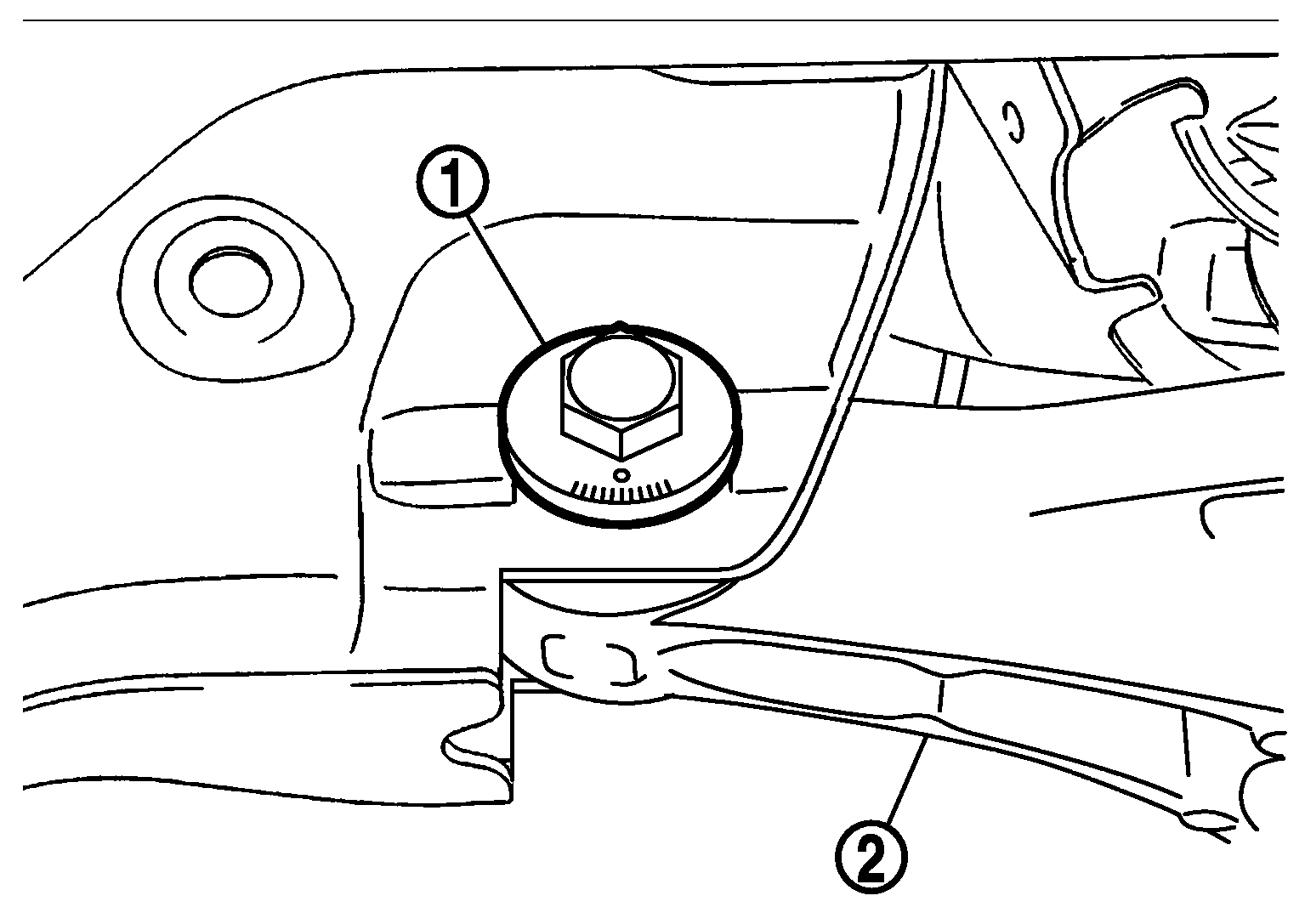

  Fig 1: Identifying Rear Lower Link And Adjusting Bolt
  Courtesy of NISSAN NORTH AMERICA, INC.
