System Description
›
Shift Change Control
›
System Diagram
System Diagram

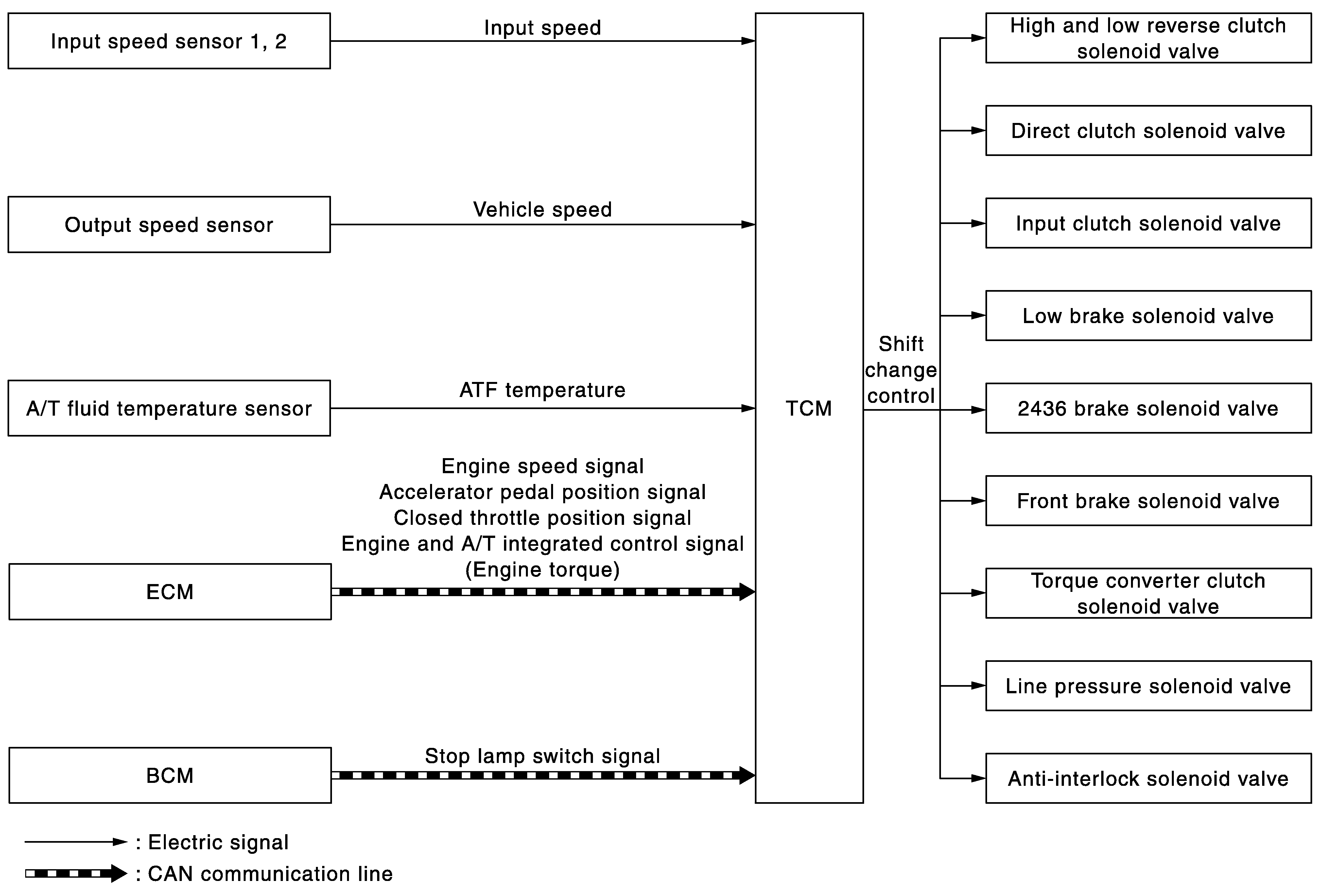

Fig 1: Shift Change Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
