Removal and Installation: Removal

  1. Remove the glove box assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect AWD control unit harness connector.
  3. Remove AWD control unit (1) mounting nuts.
  4. Remove AWD control unit.

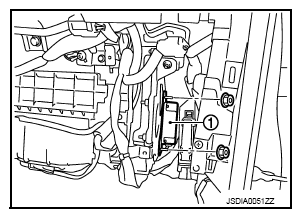

    Fig 1: Identifying AWD Control Unit And Mounting Nuts
    G08194993Courtesy of NISSAN NORTH AMERICA, INC.
