AWD SYSTEM: System Description
›
System Diagram
System Diagram

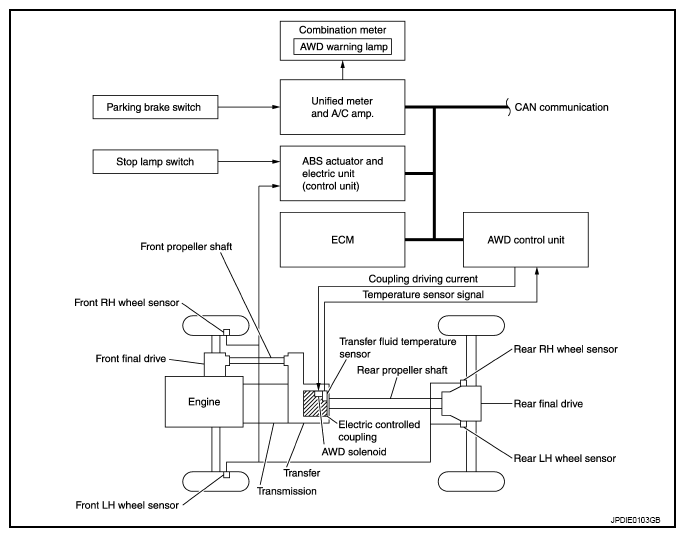

Fig 1: AWD - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
