Engine Cooling System Schematic

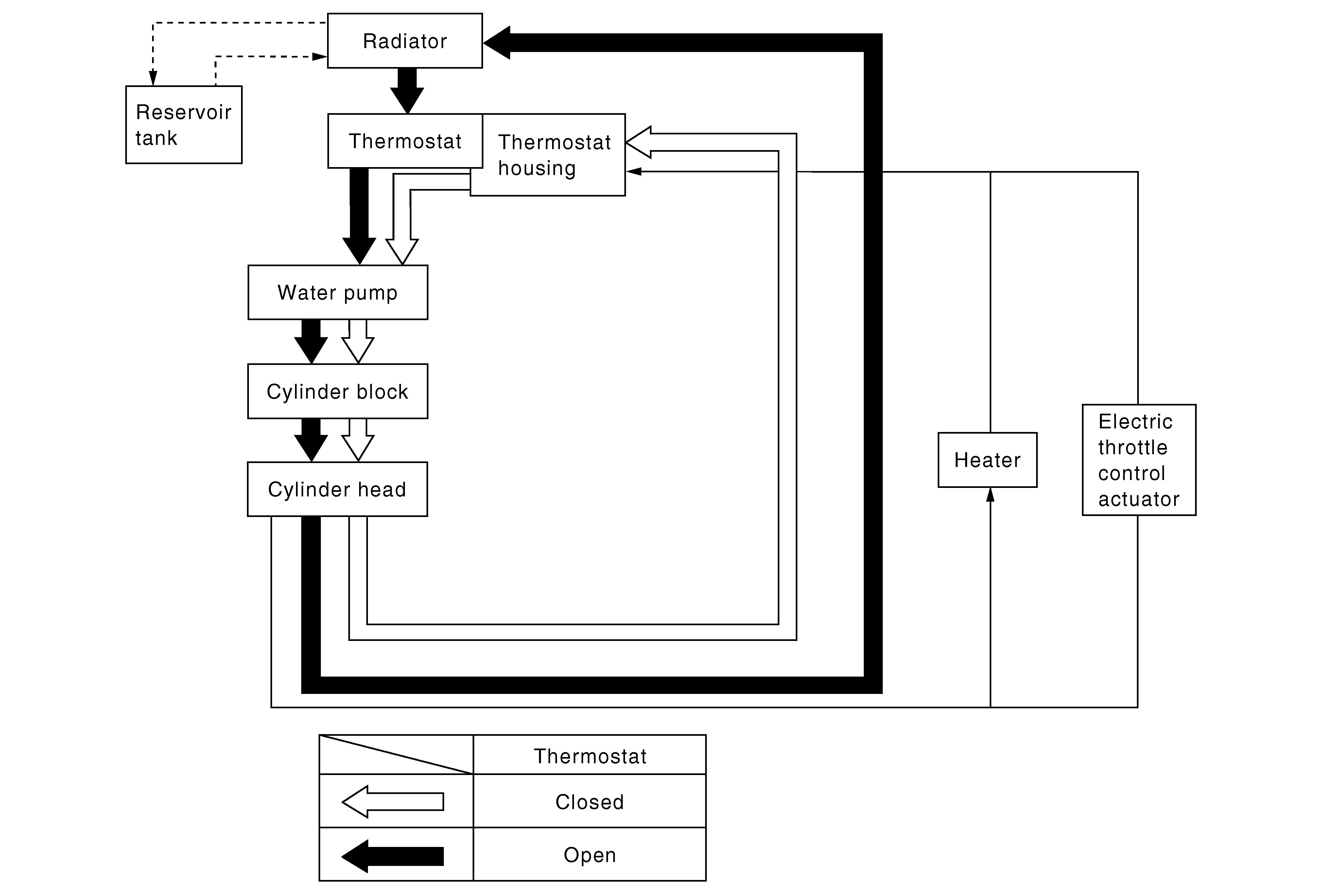

Fig 1: Engine Cooling System Schematic
G04874713Courtesy of NISSAN NORTH AMERICA, INC.
