Right Side

WARNING: This page is about a different variant/trim than selected.

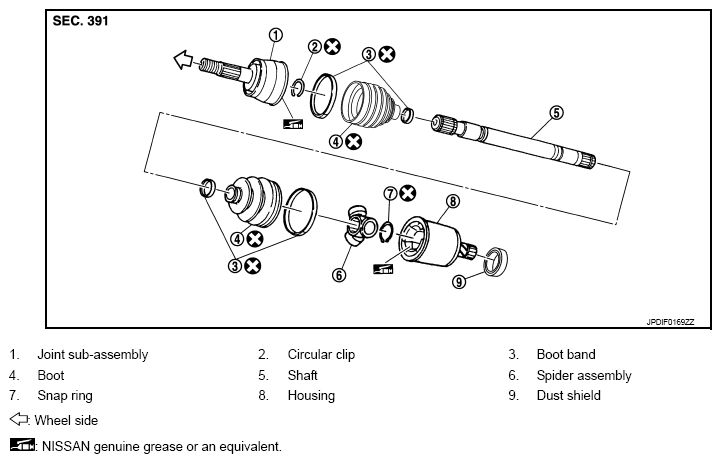

Fig 1: Exploded View Of Front Drive Shaft Boot (Right Side)

G08194118

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols not described on the above.
