Exploded View

WARNING: This page is about a different variant/trim than selected.

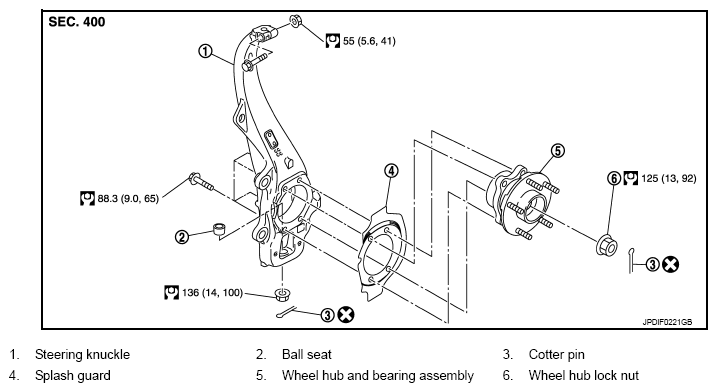

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.
