INFINITI Vehicle Immobilizer System-NATS
›
Component Parts Location
Component Parts Location

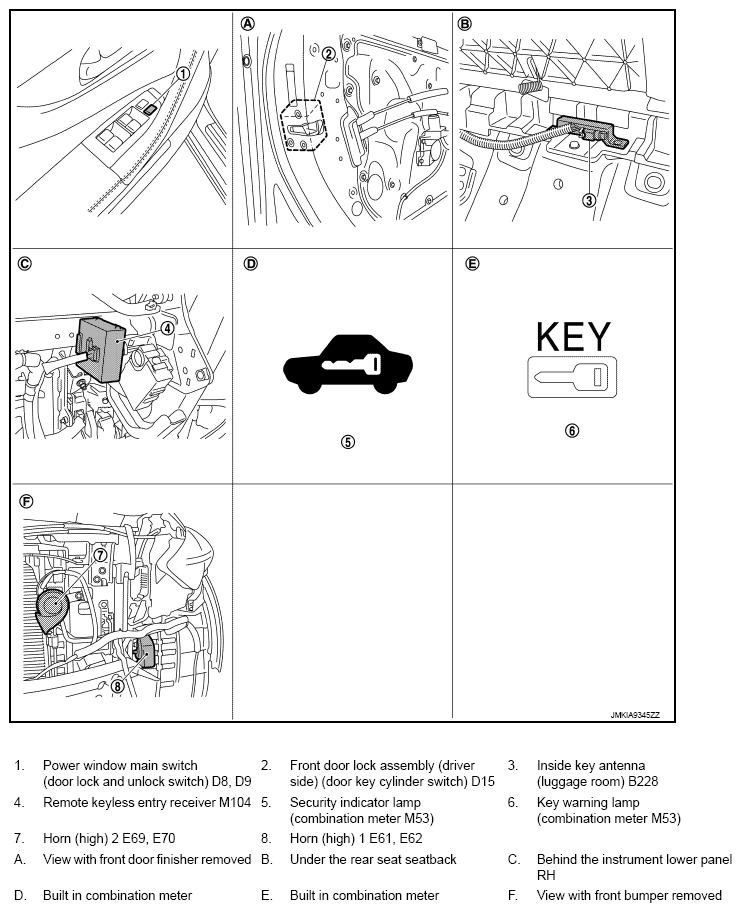

Fig 1: Infiniti Vehicle Immobilizer System-NATS Components Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Infiniti Vehicle Immobilizer System-NATS Components Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
