Removal and Installation: Removal

  1. Remove the rear door finisher.

    Refer to "EXPLODED VIEW " and "REMOVAL AND INSTALLATION ".

  2. Rear power window switch (1) is removed from rear power window switch finisher (2) using remover tool (A).
    CAUTION: Never fold pawl of rear door finisher.

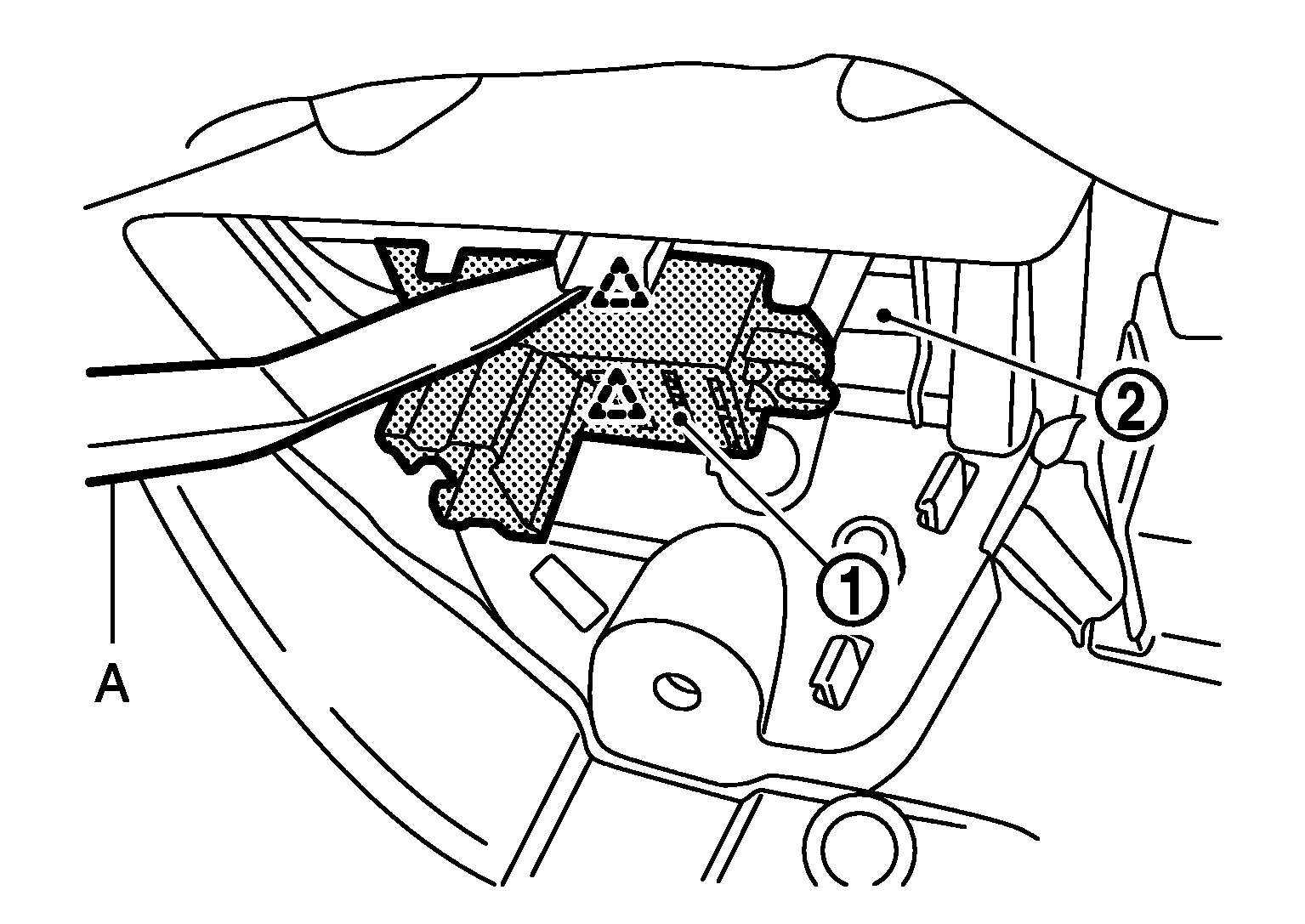

    Fig 1: Removing Rear Power Window Switch From Finisher Using Remover Tool
    G05982485Courtesy of NISSAN NORTH AMERICA, INC.
