Without Continuous Damping Control

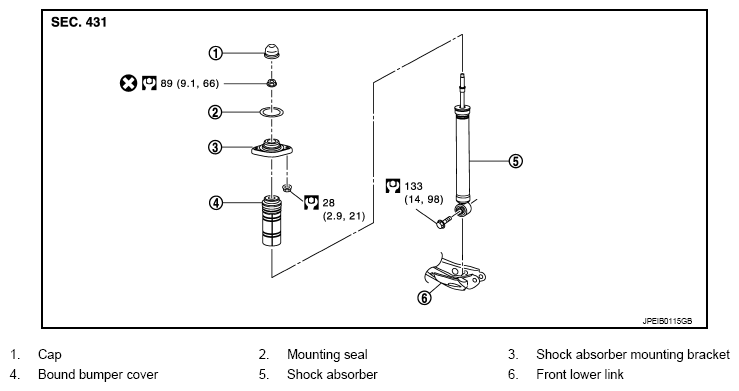

Fig 1: Exploded View Of Rear Shock Absorber With Torque Specifications (Without Continuous Damping Control)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
