System Description
›
Shift Mechanism
›
Cross-Sectional View
›
2WD Models
2WD Models

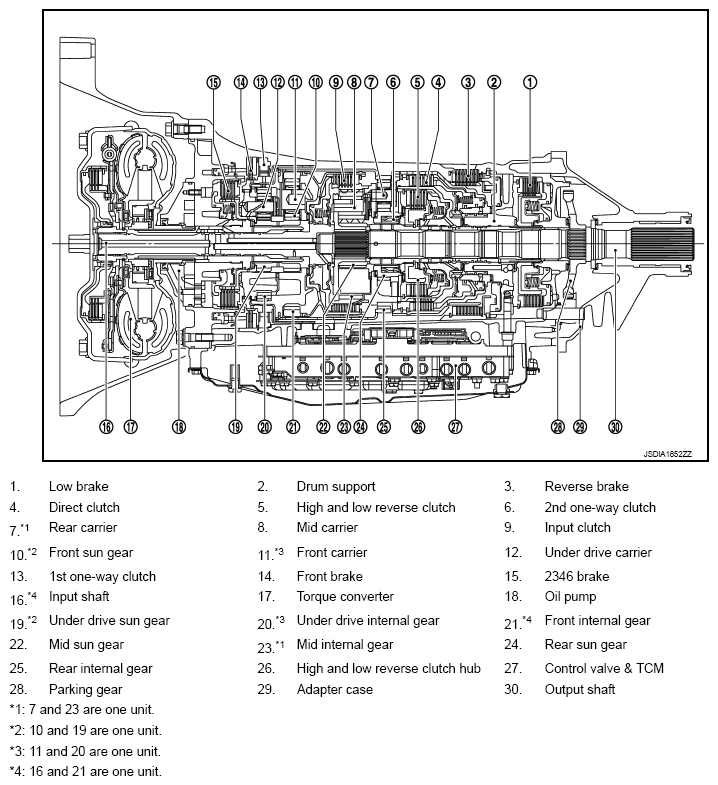

Fig 1: Cross-Sectional View Of Shift Mechanism (2WD Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
