Exploded View

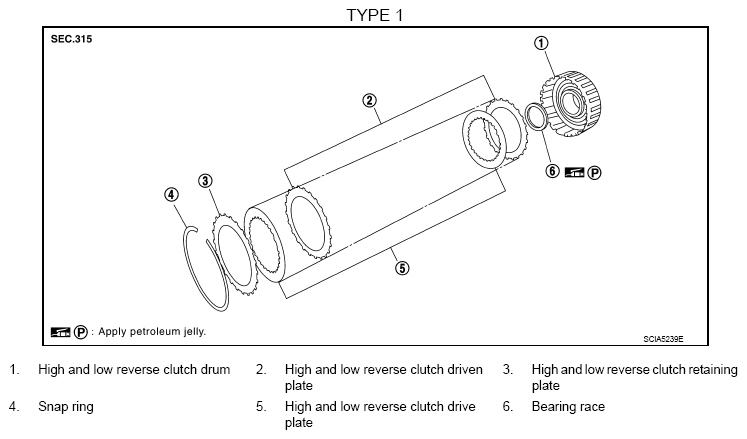

Fig 1: Exploded View Of High And Low Reverse Clutch (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

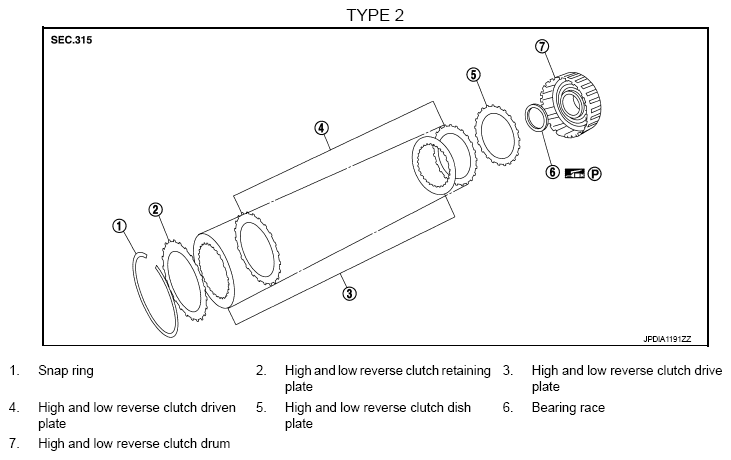

Fig 2: Exploded View Of High And Low Reverse Clutch (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.
