System Description
›
Shift Mechanism
›
System Description
›
Clutch And Band Chart
Clutch And Band Chart

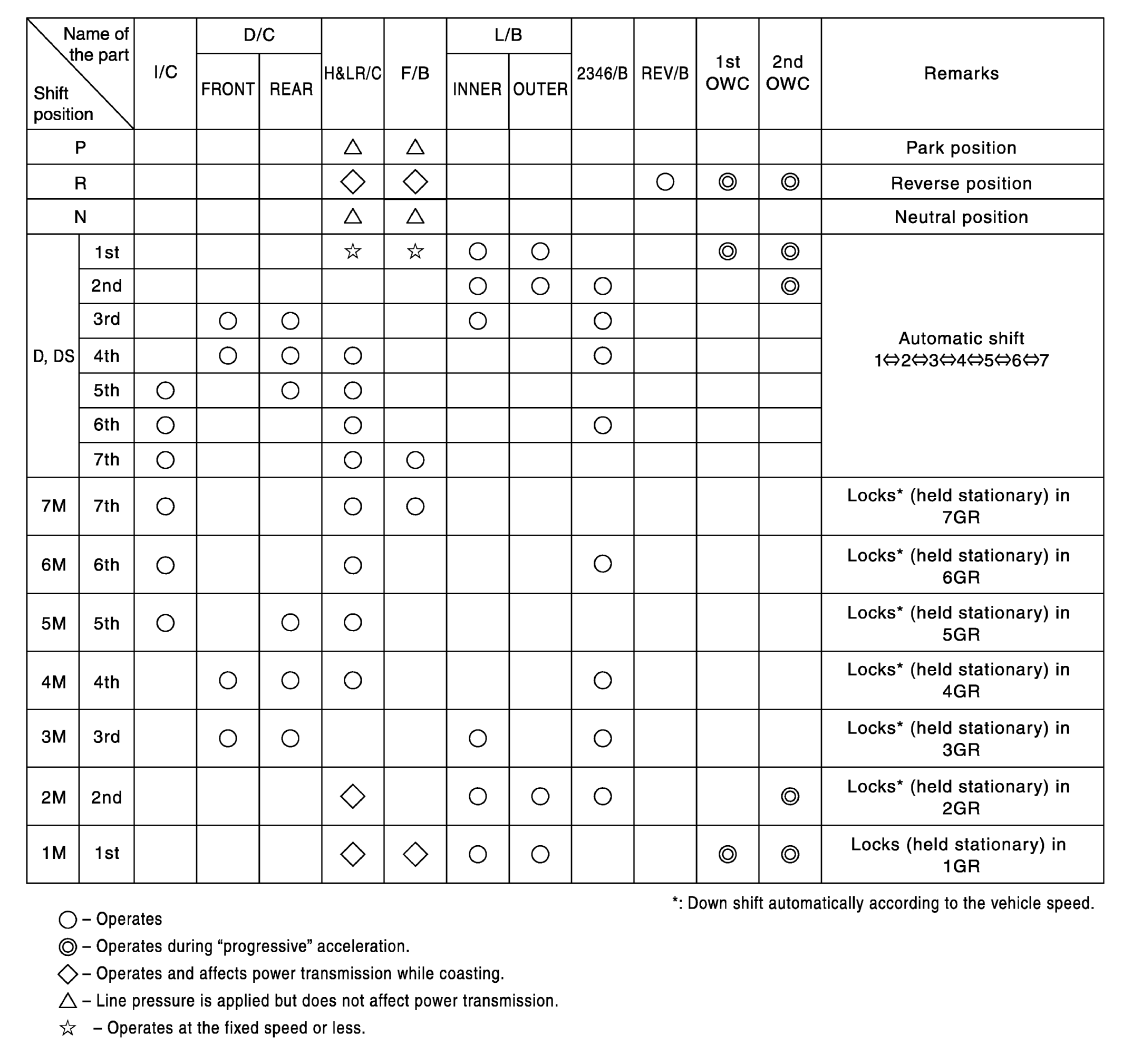

Fig 1: Shift Mechanism Clutch And Band Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
