Automatic Drive Positioner System
›
Manual Function
›
MANUAL FUNCTION: System Diagram
MANUAL FUNCTION: System Diagram

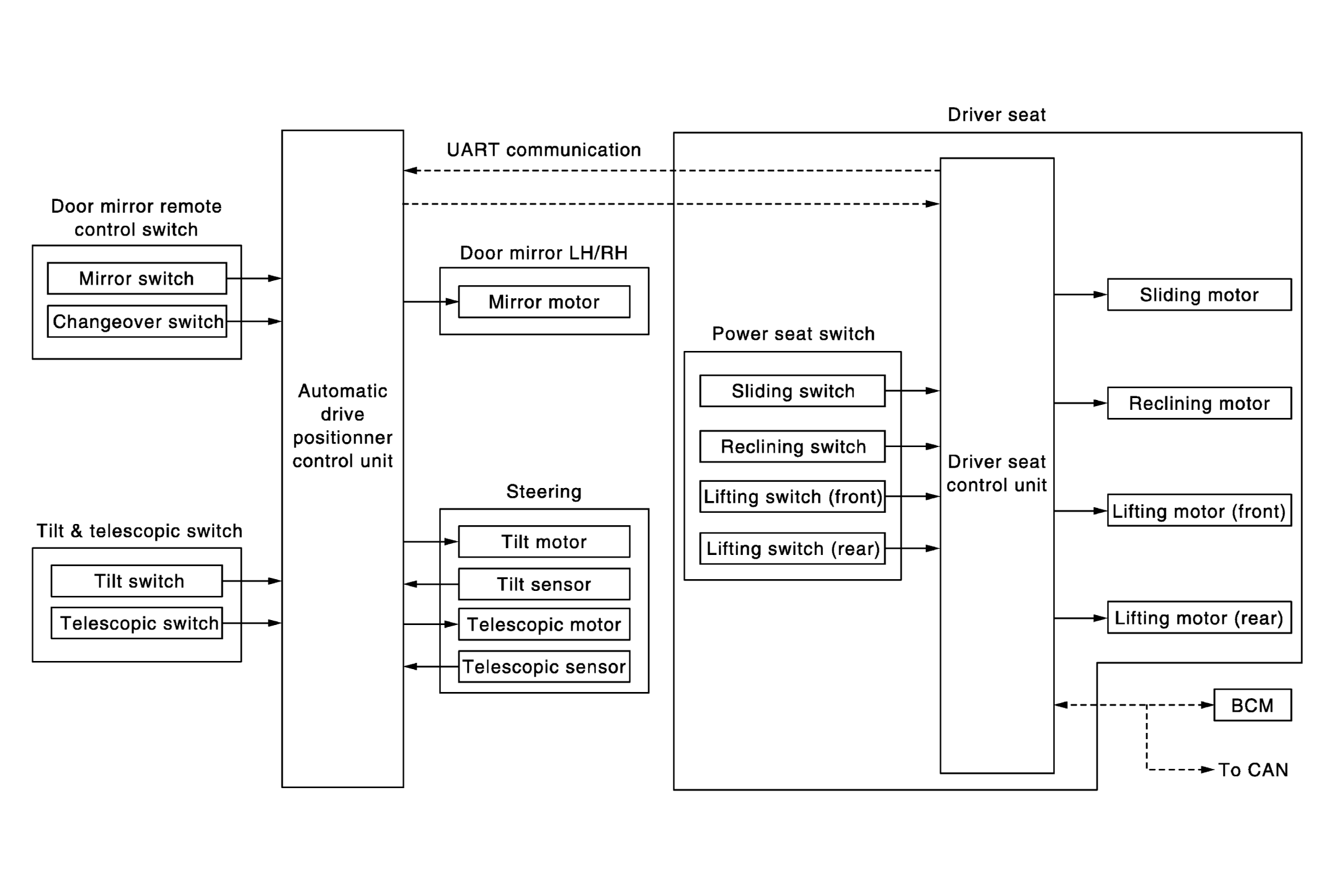

Fig 1: Manual Function - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
