Exploded View
›
Notes
Exploded View: Notes

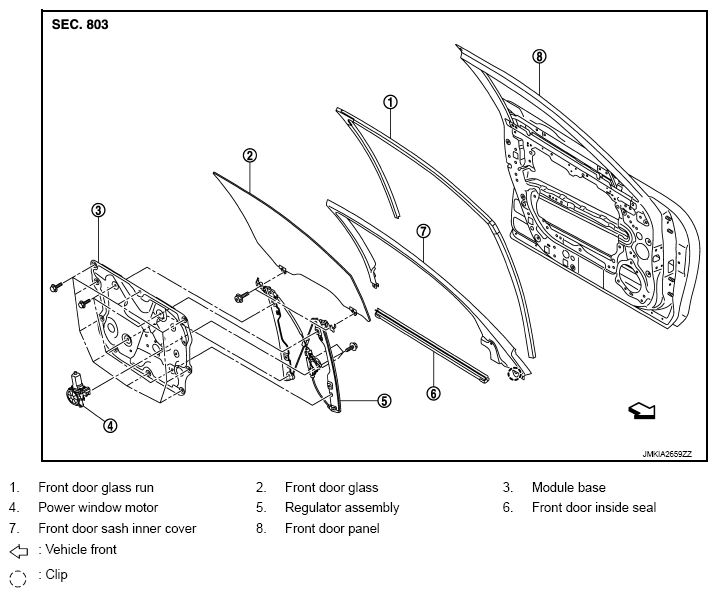

Fig 1: Exploded View Of Front Door Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
