Front Door Glass
›
Front Regulator
›
Exploded View
Exploded View

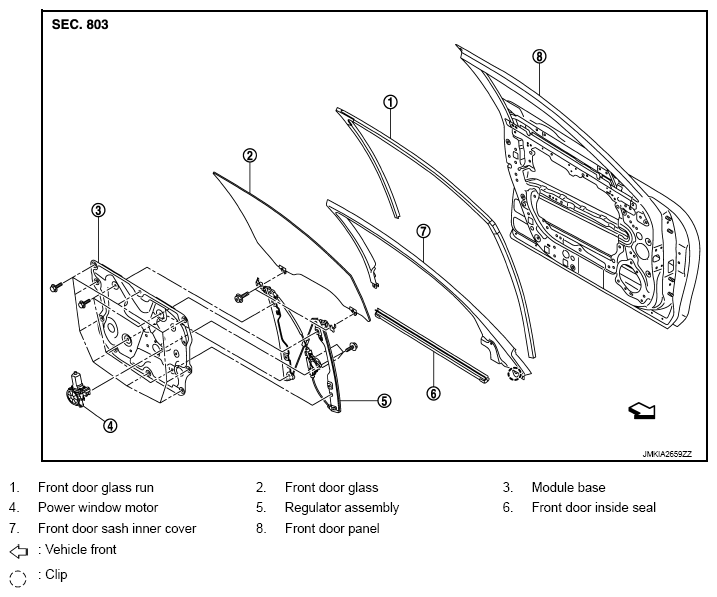

Fig 1: Exploded View Of Front Regulator Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
