Left Side

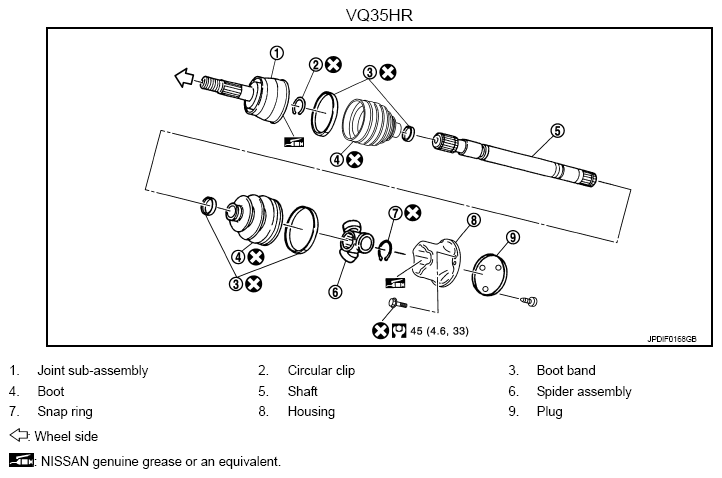

Fig 1: Exploded View Of Front Drive Shaft Boot With Torque Specifications (VQ35HR)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

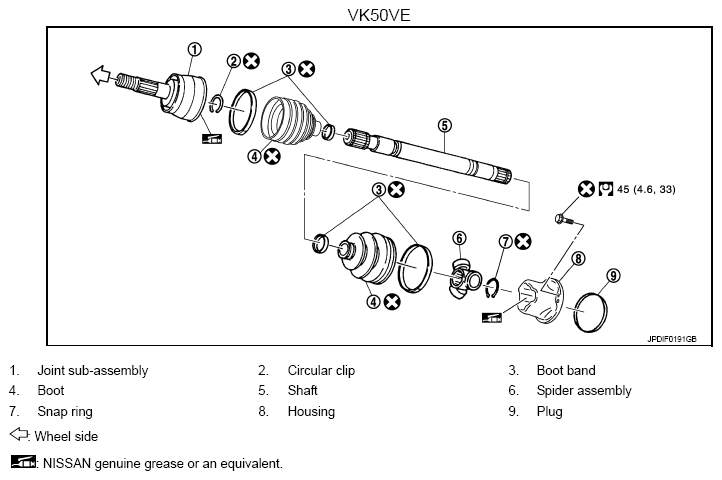

Fig 2: Exploded View Of Front Drive Shaft Boot With Torque Specifications (VK50VE)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
