Power Control System (IPDM E/R)
›
System Description
›
Power Consumption Control System
›
System Diagram
System Diagram

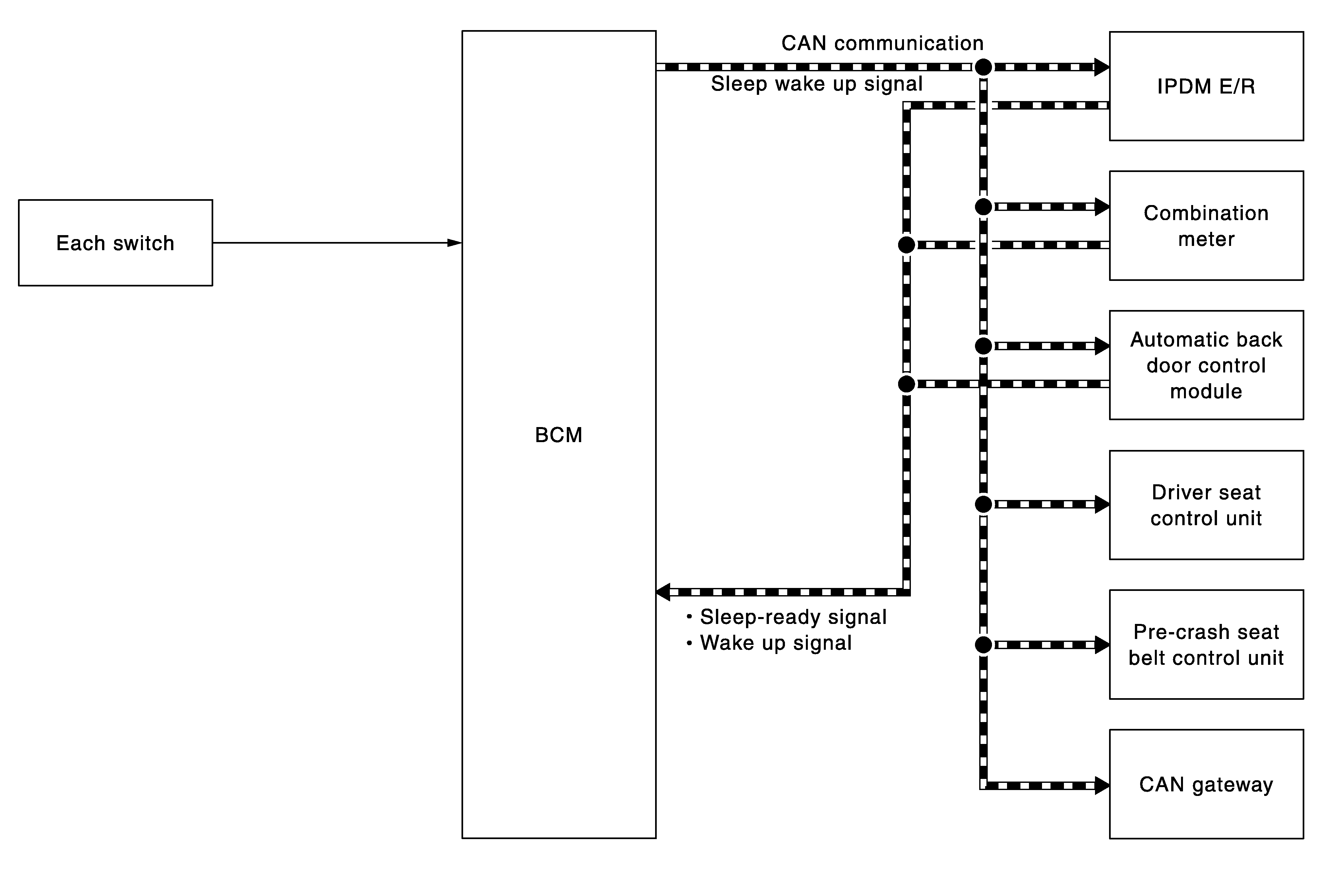

Fig 1: Power Consumption Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Combination meter is received via unified meter and A/C amp.
Courtesy of NISSAN NORTH AMERICA, INC.
