Engine Control System (VK50VE) - FX50 - Diagnostic Introduction
›
System Description
›
Engine Control System
›
System Diagram
System Diagram

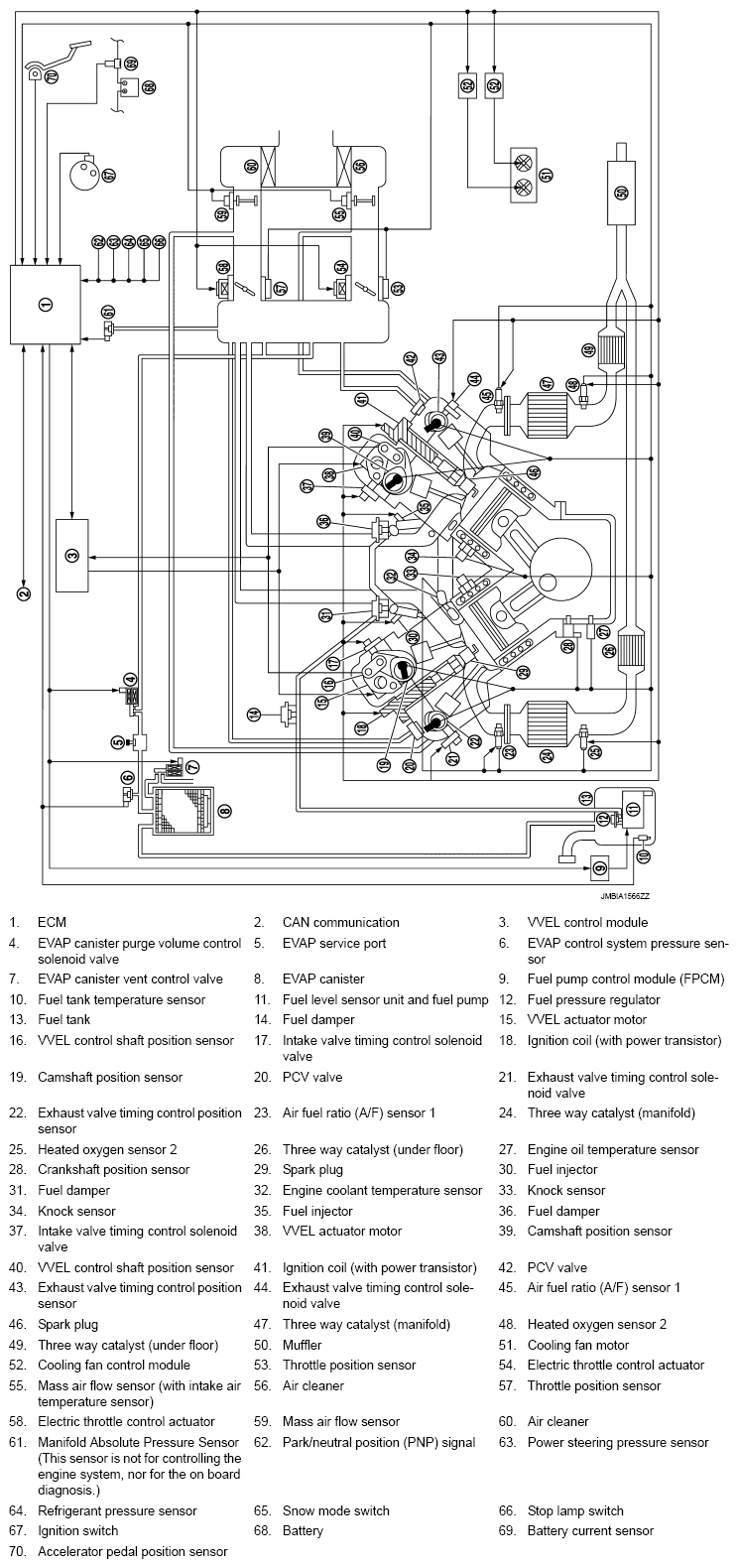

Fig 1: Engine Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
