Component Parts Location

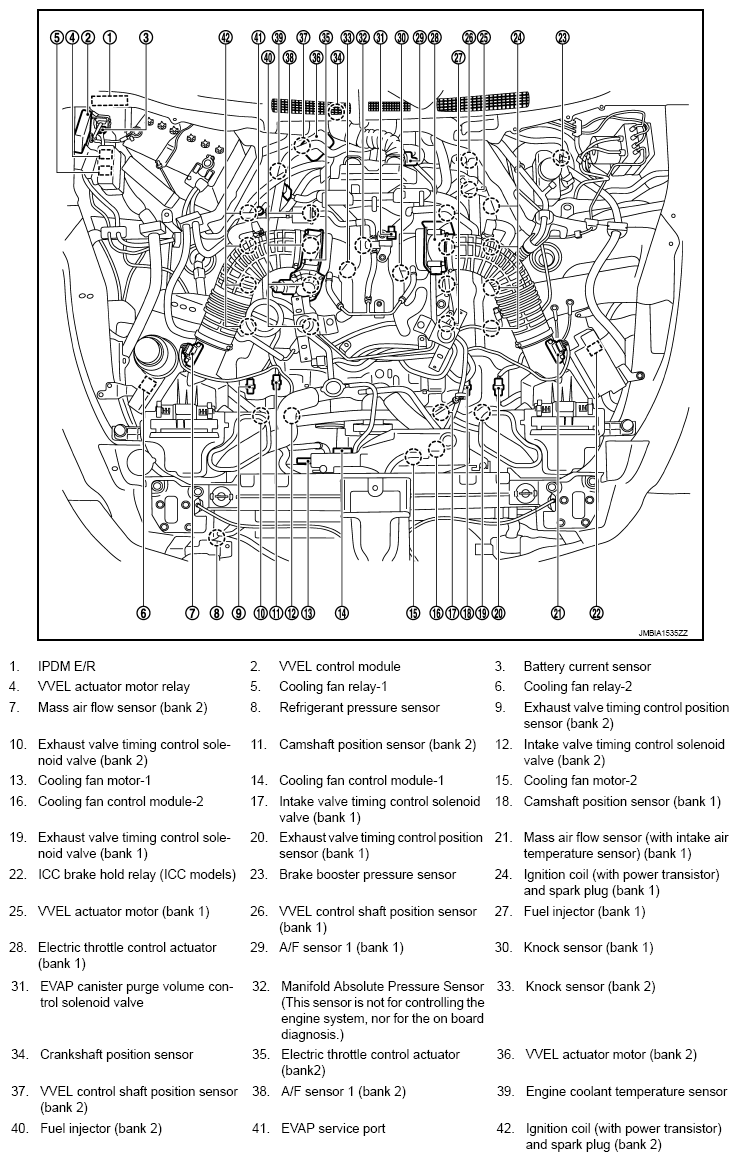

Fig 1: VVEL System Components Location (1 Of 25)

G08210743

Courtesy of NISSAN NORTH AMERICA, INC.

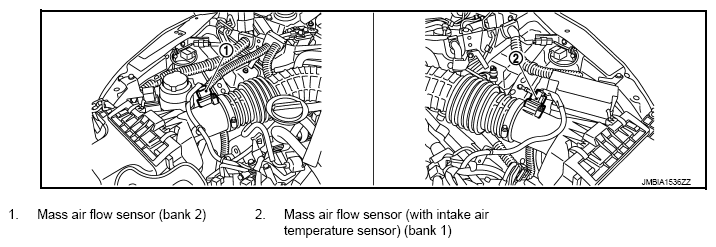

Fig 2: VVEL System Components Location (2 Of 25)

G08210744

Courtesy of NISSAN NORTH AMERICA, INC.

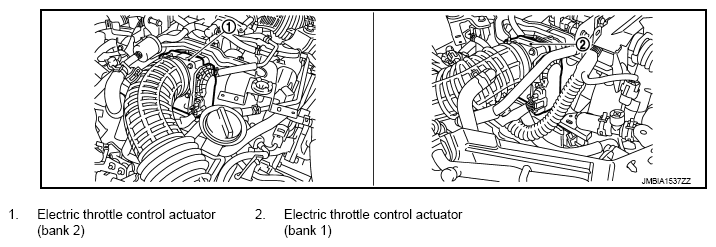

Fig 3: VVEL System Components Location (3 Of 25)

G08210745

Courtesy of NISSAN NORTH AMERICA, INC.

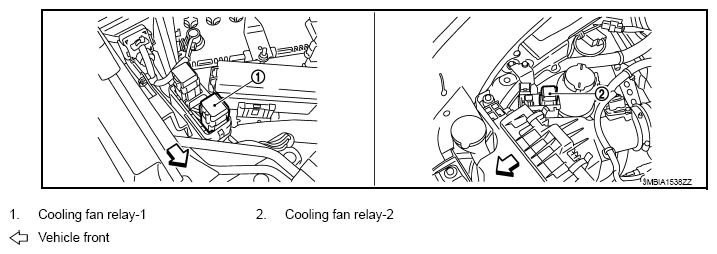

Fig 4: VVEL System Components Location (4 Of 25)

G08210746

Courtesy of NISSAN NORTH AMERICA, INC.

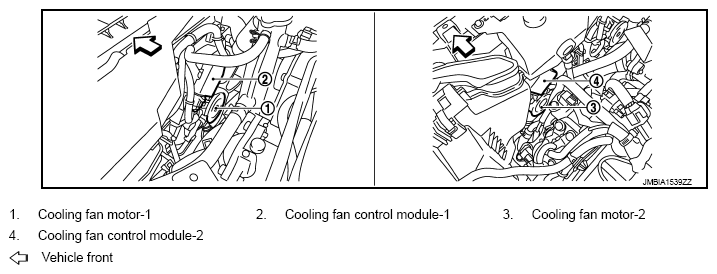

Fig 5: VVEL System Components Location (5 Of 25)

G08210747

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: VVEL System Components Location (6 Of 25)

G07227270

Courtesy of NISSAN NORTH AMERICA, INC.

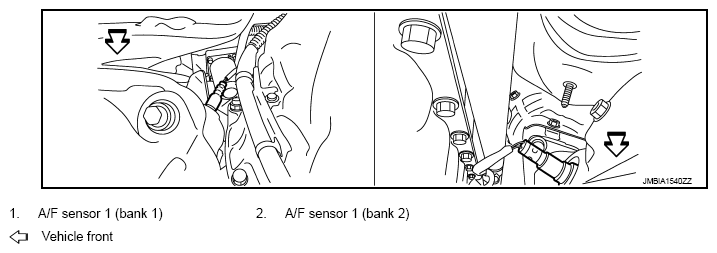

Fig 7: VVEL System Components Location (7 Of 25)

G08210749

Courtesy of NISSAN NORTH AMERICA, INC.

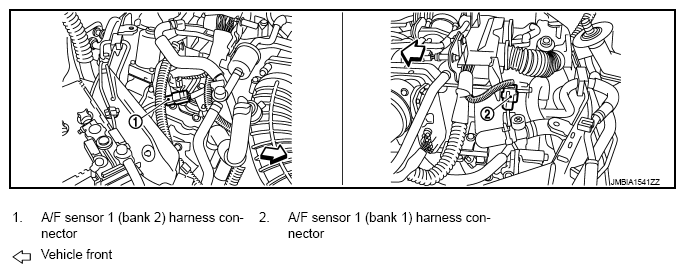

Fig 8: VVEL System Components Location (8 Of 25)

G08210750

Courtesy of NISSAN NORTH AMERICA, INC.

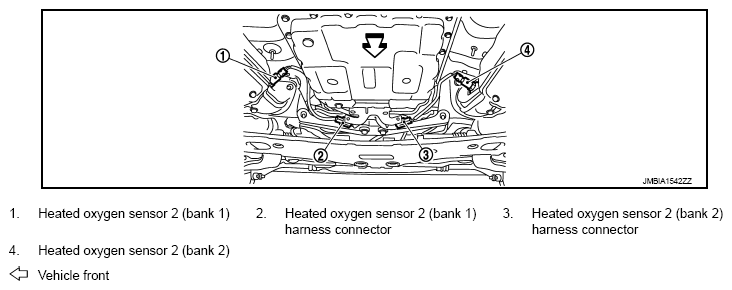

Fig 9: VVEL System Components Location (9 Of 25)

G08210751

Courtesy of NISSAN NORTH AMERICA, INC.

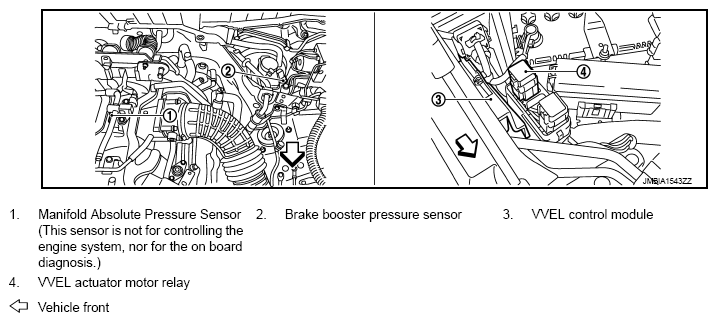

Fig 10: VVEL System Components Location (10 Of 25)

G08210752

Courtesy of NISSAN NORTH AMERICA, INC.

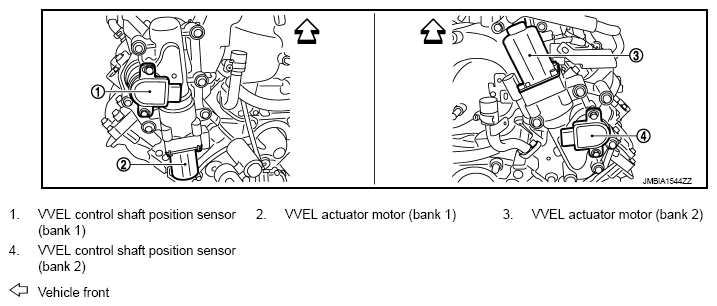

Fig 11: VVEL System Components Location (11 Of 25)

G08210753

Courtesy of NISSAN NORTH AMERICA, INC.

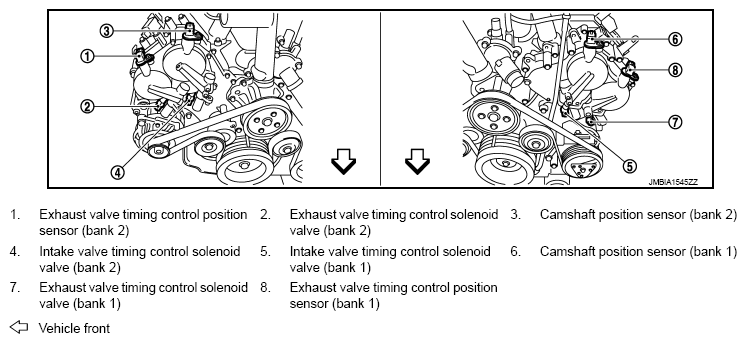

Fig 12: VVEL System Components Location (12 Of 25)

G08210754

Courtesy of NISSAN NORTH AMERICA, INC.

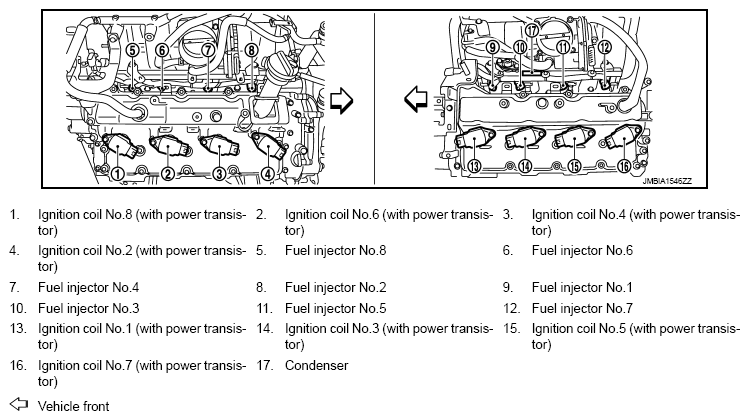

Fig 13: VVEL System Components Location (13 Of 25)

G08210755

Courtesy of NISSAN NORTH AMERICA, INC.

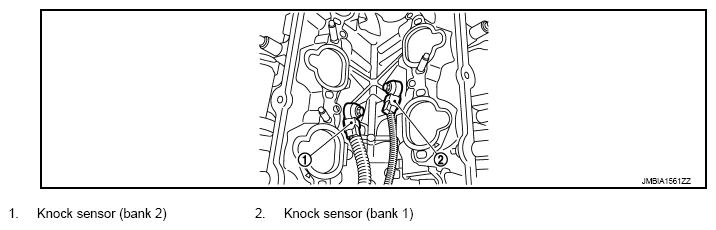

Fig 14: VVEL System Components Location (14 Of 25)

G08210756

Courtesy of NISSAN NORTH AMERICA, INC.

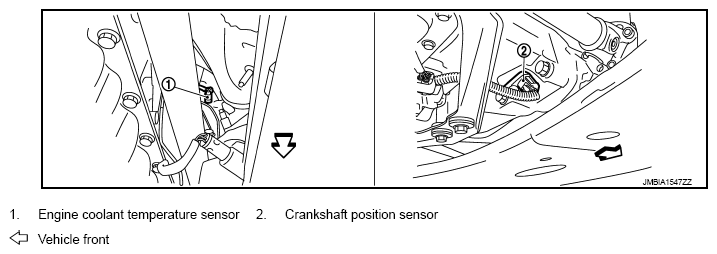

Fig 15: VVEL System Components Location (15 Of 25)

G08210757

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: VVEL System Components Location (16 Of 25)

G08210758

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: VVEL System Components Location (17 Of 25)

G08210759

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: VVEL System Components Location (18 Of 25)

G08210760

Courtesy of NISSAN NORTH AMERICA, INC.

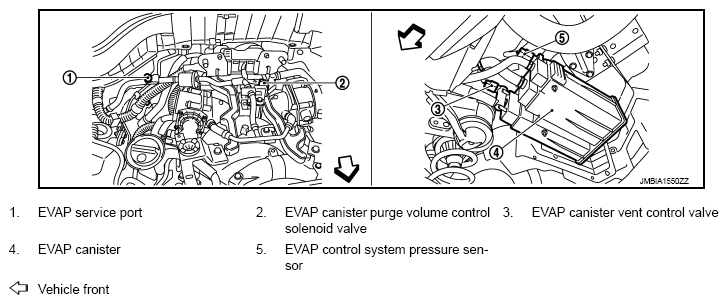

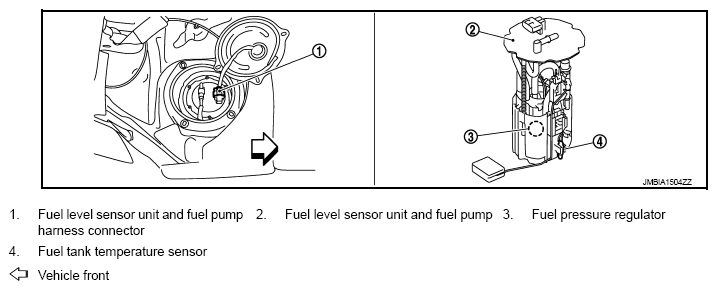

Fig 19: VVEL System Components Location (19 Of 25)

G08210761

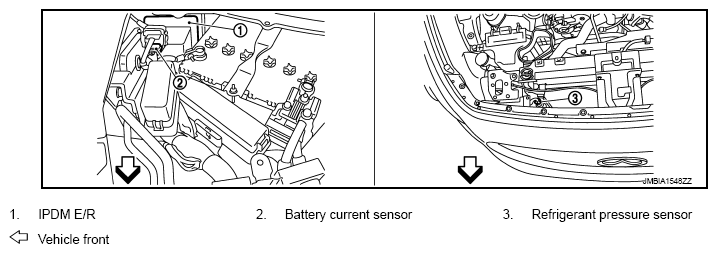

Courtesy of NISSAN NORTH AMERICA, INC.

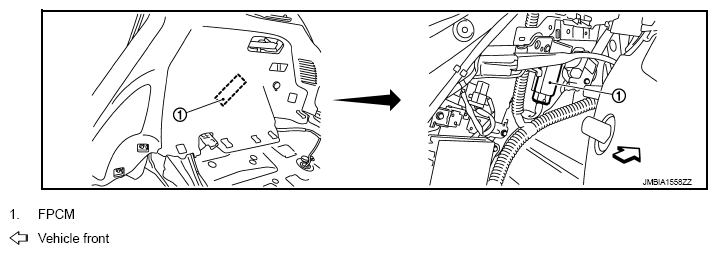

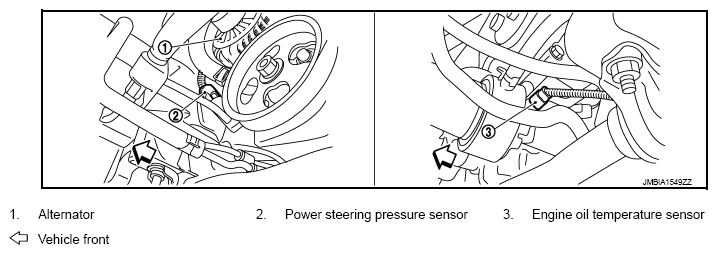

Fig 20: VVEL System Components Location (20 Of 25)

G08210762

Courtesy of NISSAN NORTH AMERICA, INC.

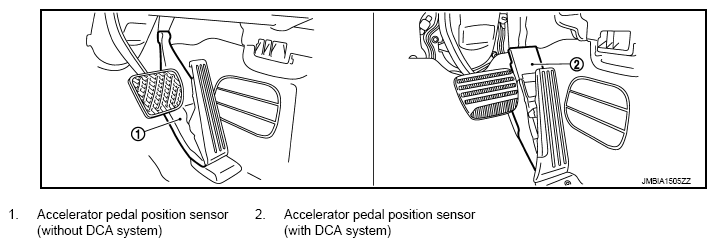

Fig 21: VVEL System Components Location (21 Of 25)

G08210763

Courtesy of NISSAN NORTH AMERICA, INC.

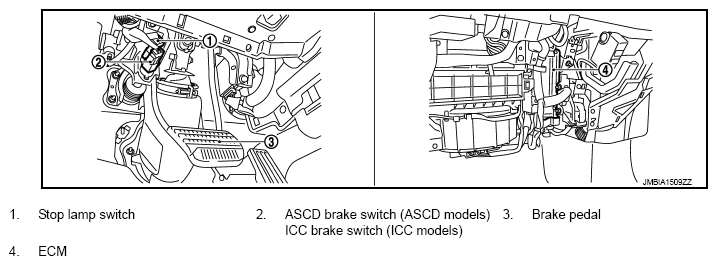

Fig 22: VVEL System Components Location (22 Of 25)

G08210764

Courtesy of NISSAN NORTH AMERICA, INC.

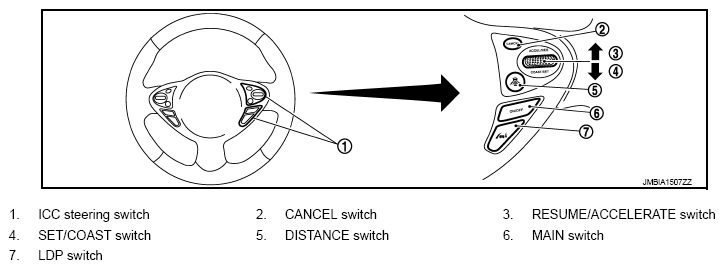

Fig 23: VVEL System Components Location (23 Of 25)

G08210765

Courtesy of NISSAN NORTH AMERICA, INC.

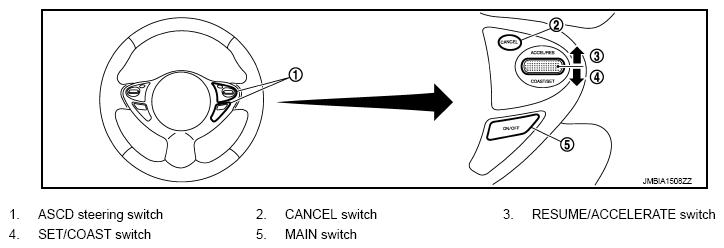

Fig 24: VVEL System Components Location (24 Of 25)

G08210766

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 25: VVEL System Components Location (25 Of 25)

G08210767

Courtesy of NISSAN NORTH AMERICA, INC.
