Engine Cooling System

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

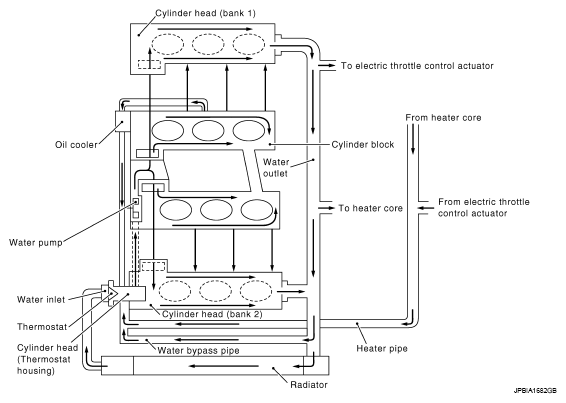

Fig 1: Engine Cooling System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
