Data Monitor

WARNING: This page is about a different car, the 2011 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SIGNAL B, SIGNAL C are displayed, but not used.

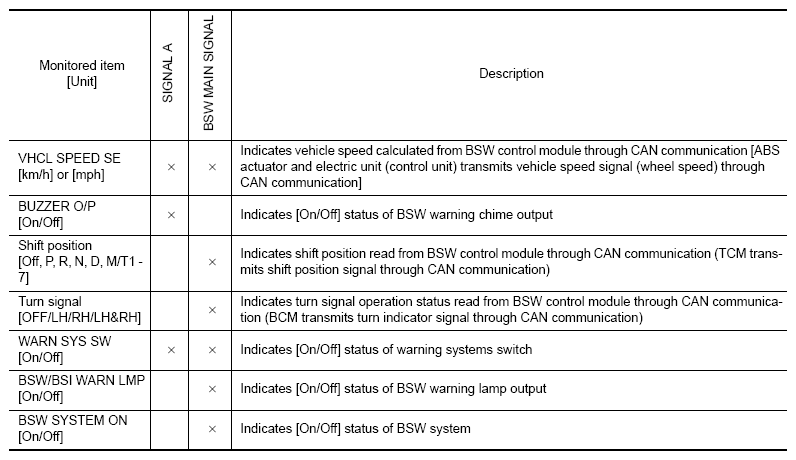

Fig 1: Data Monitor Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
