FixVault
Home
›
Infiniti
›
2012
›
FX50
›
Repair and Diagnosis
›
Restraints
›
Air Bag, SRS
›
SRS Airbag
›
Removal And Installation
›
Driver Air Bag Module
›
Exploded View
Exploded View

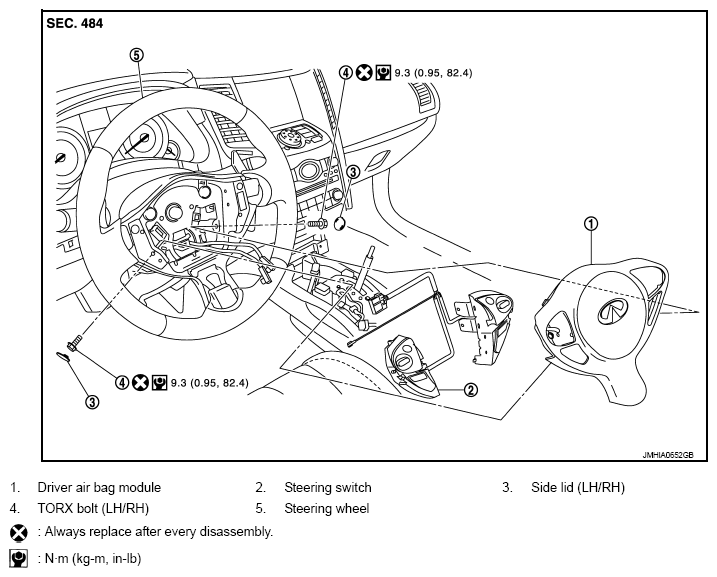

Fig 1: Exploded View Of Driver Air Bag Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
