Front Body Vertical G Sensor
›
Exploded View
Exploded View

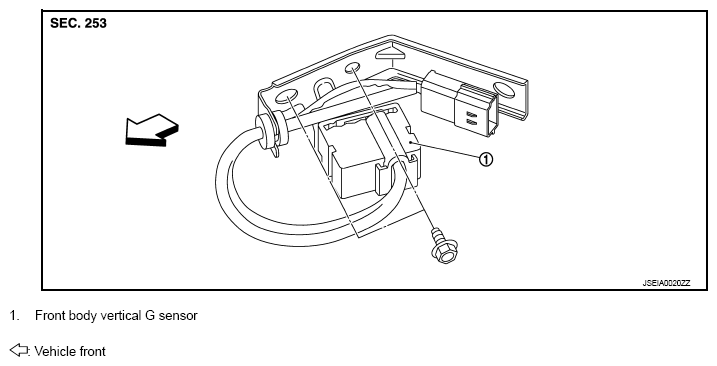

Fig 1: Identifying Front Body Vertical G Sensor Components
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
The above figure shows left side. Right side is the mirror image.
Courtesy of NISSAN MOTOR CO., U.S.A.
