Exploded View

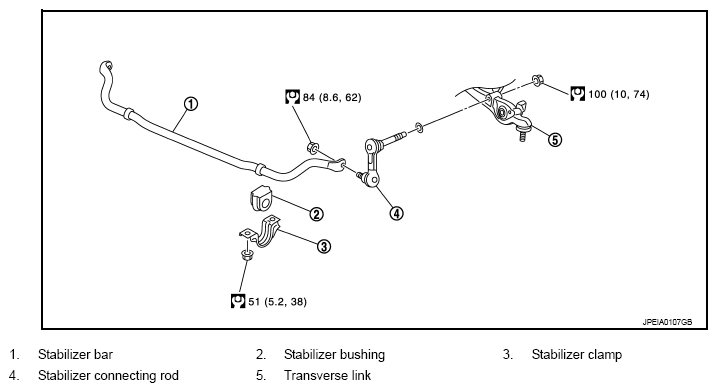

Fig 1: Stabilizer Bar, Bushing, Clamp, Connecting Rod And Transverse Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
