Exploded View

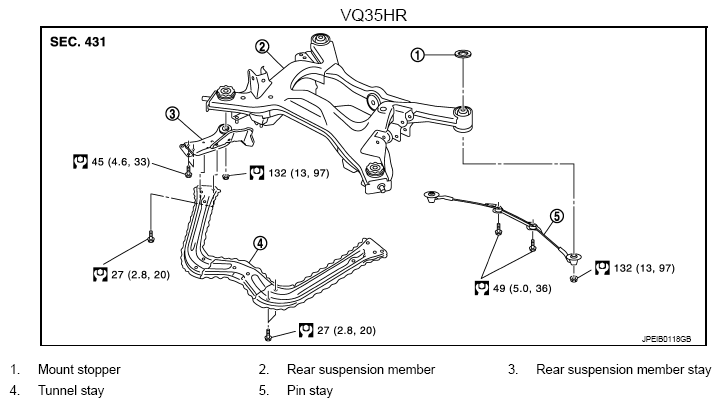

Fig 1: Rear Suspension Member Replacement Components (VQ35HR) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

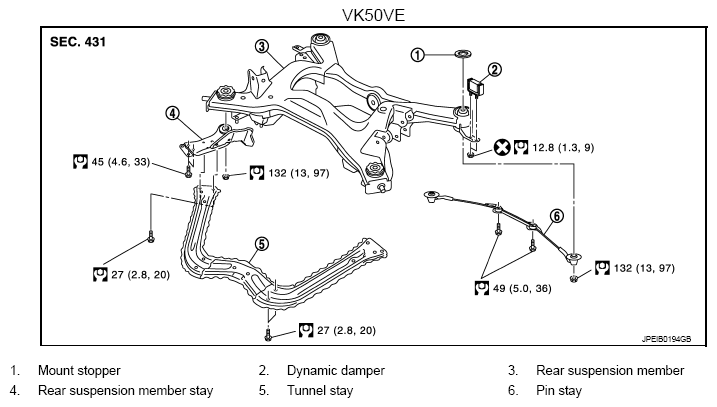

Fig 2: Rear Suspension Member Replacement Components (VK50VE) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
