System Diagram
System Diagram

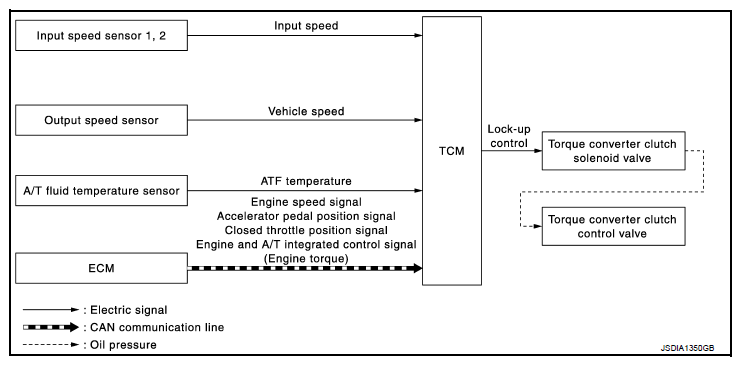

Fig 1: Lock-Up Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
