Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
System Description
›
Shift Pattern Control
›
Manual Mode
›
MANUAL MODE: System Diagram
MANUAL MODE: System Diagram

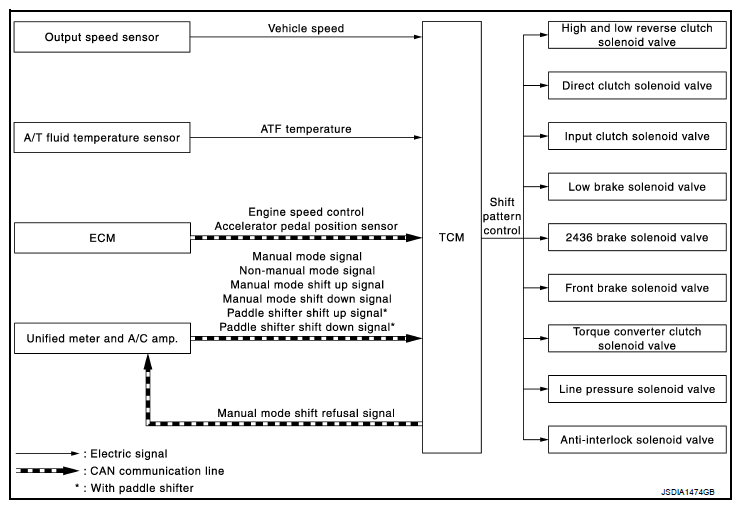

Fig 1: Shift Pattern Control - System Diagram (Manual Mode)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
