Engine Lubrication System Schematic

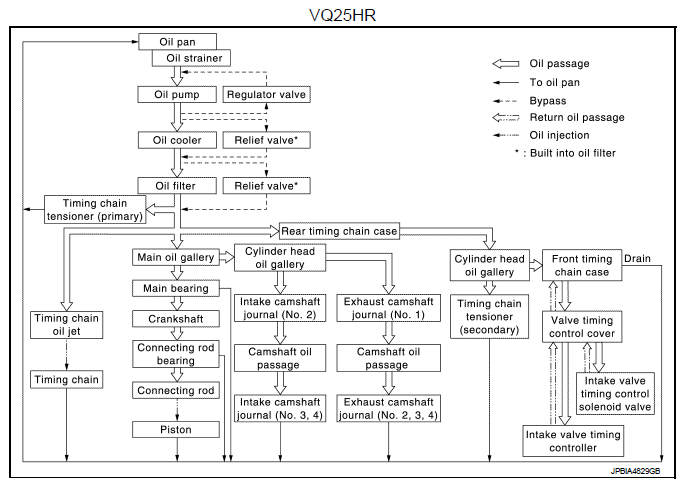

Fig 1: Engine Lubrication System Schematic (VQ25HR)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Without oil cooler for 2WD models.

Fig 2: Engine Lubrication System Schematic (VQ37VHR)

Courtesy of NISSAN NORTH AMERICA, INC.
