Engine Control System - Component Testing
›
Periodic Maintenance
›
Fuel Pressure
›
Inspection
›
Fuel Pressure Release
›
Without CONSULT
Without CONSULT
Remove fuel pump fuse (1) located in IPDM E/R (2).
Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.
Reinstall fuel pump fuse after servicing fuel system.

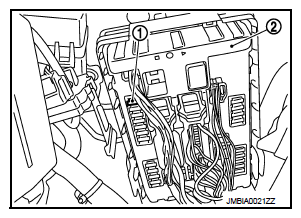

Fig 1: Identifying Fuel Pump Fuse And IPDM E/R
Courtesy of NISSAN NORTH AMERICA, INC.
