Engine Control System - Introduction
›
Basic Inspection
›
Diagnosis And Repair Work Flow
›
Work Flow
›
Overall Sequence
Overall Sequence

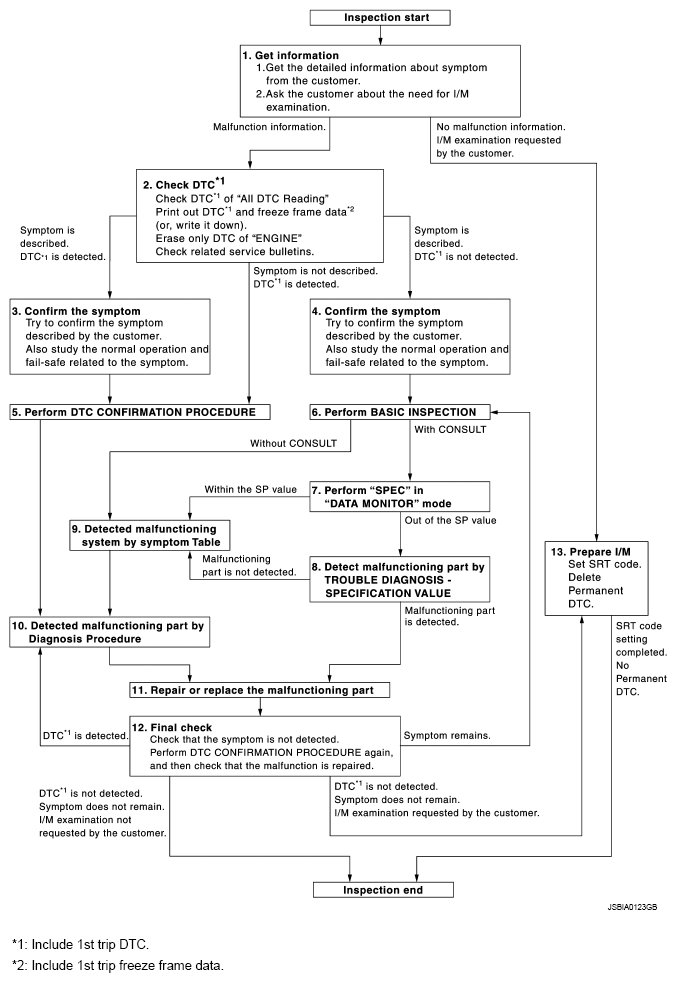

Fig 1: Engine Control System Diagnosis And Repair Work Flow Chart (VQ25HR For USA And Canada)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
