Engine Control System - Introduction
›
System Description
›
Exhaust Valve Timing Control
›
System Diagram
System Diagram

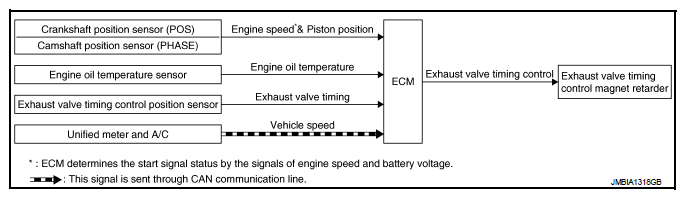

Fig 1: Exhaust Valve Timing Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
