WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

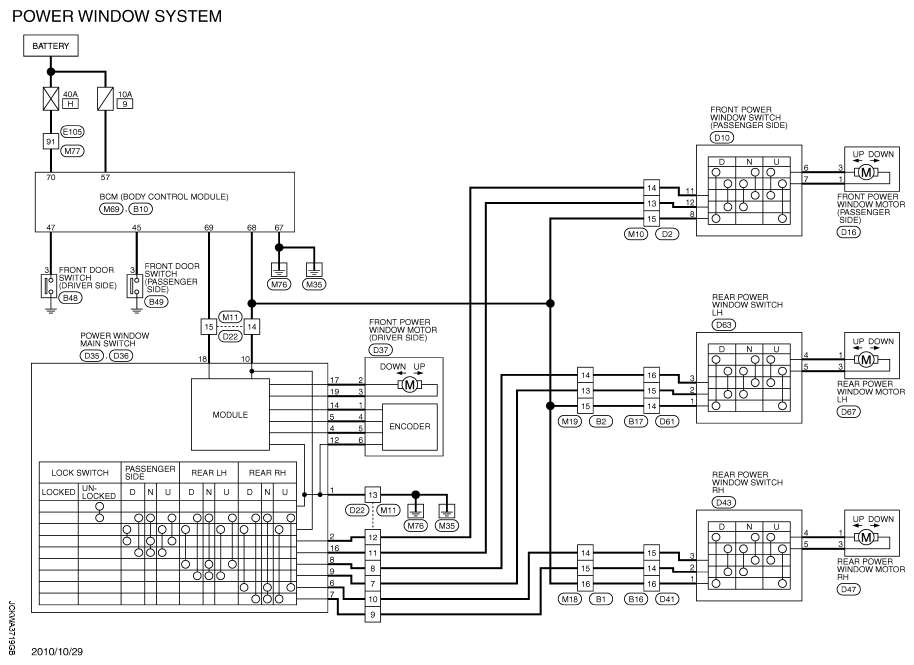

Fig 1: Power Window System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

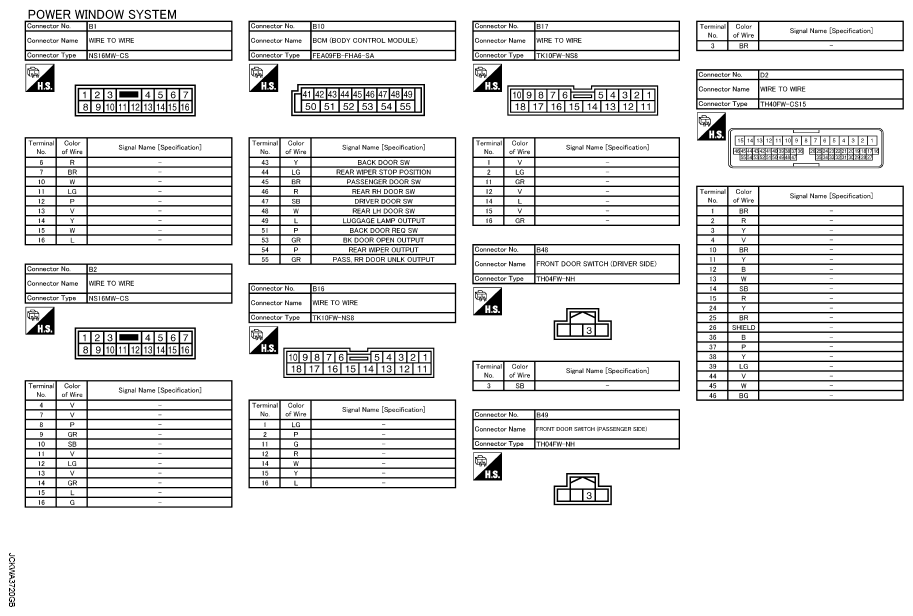

Fig 2: Identifying Power Window System Connectors (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

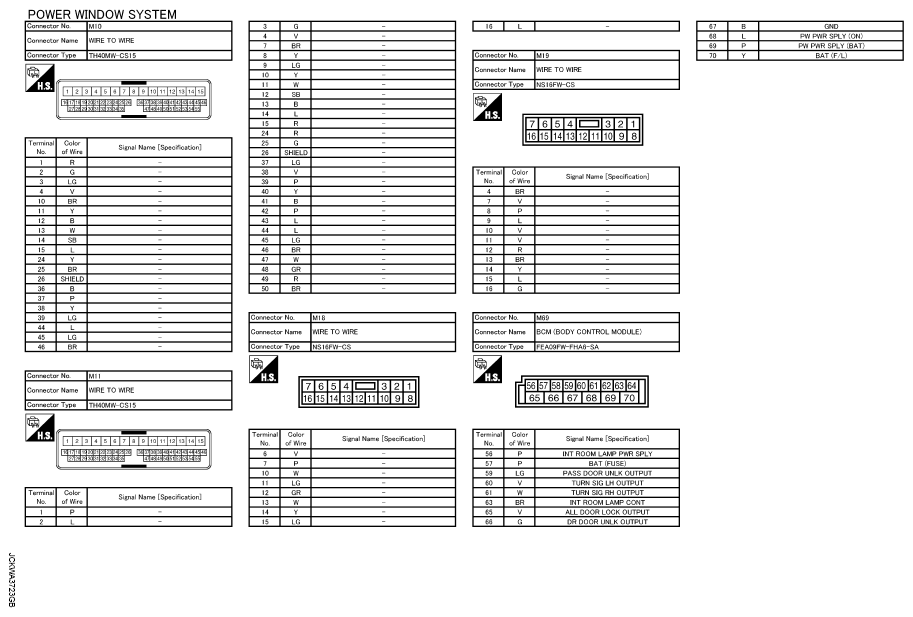

Fig 3: Identifying Power Window System Connectors (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

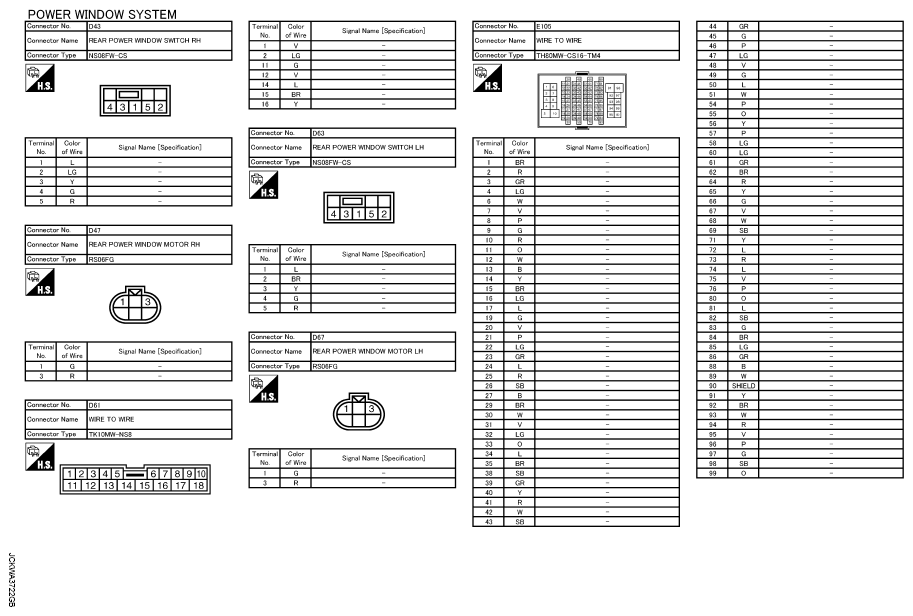

Fig 4: Identifying Power Window System Connectors (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

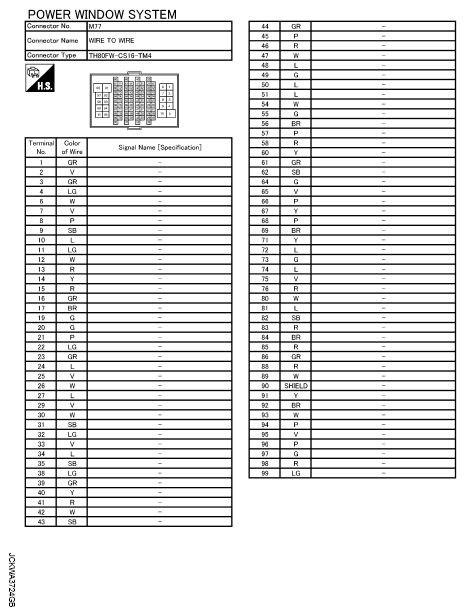

Fig 5: Identifying Power Window System Connectors (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

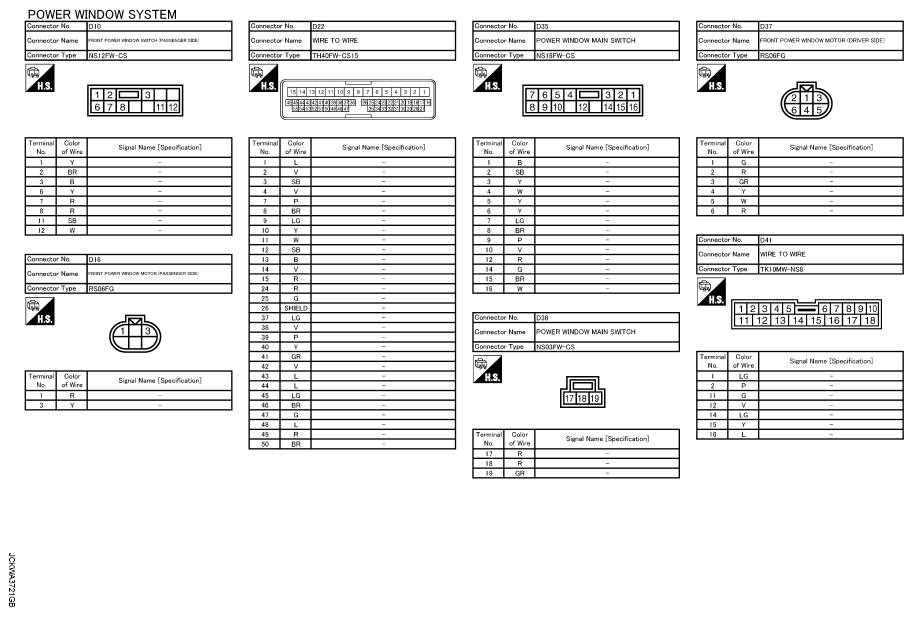

Fig 6: Identifying Power Window System Connectors (5 Of 5)
