Power Switch

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

Power switch (push switch) is pressed, and transmits the status signal to BCM and IPDM E/R.

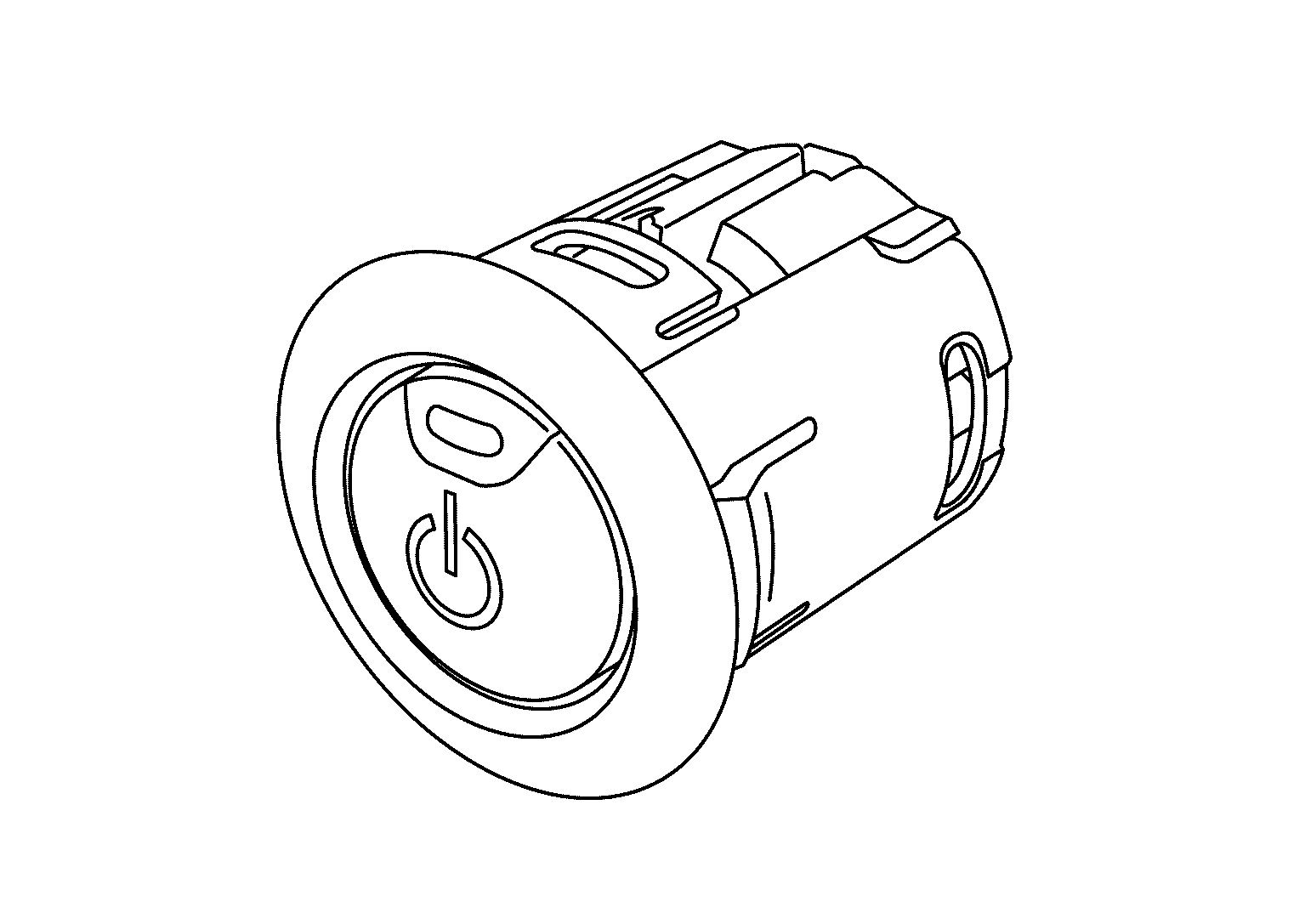

Fig 1: Identifying Power Switch (Push Switch)

Courtesy of NISSAN MOTOR CO., U.S.A.
