Component Parts Location

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

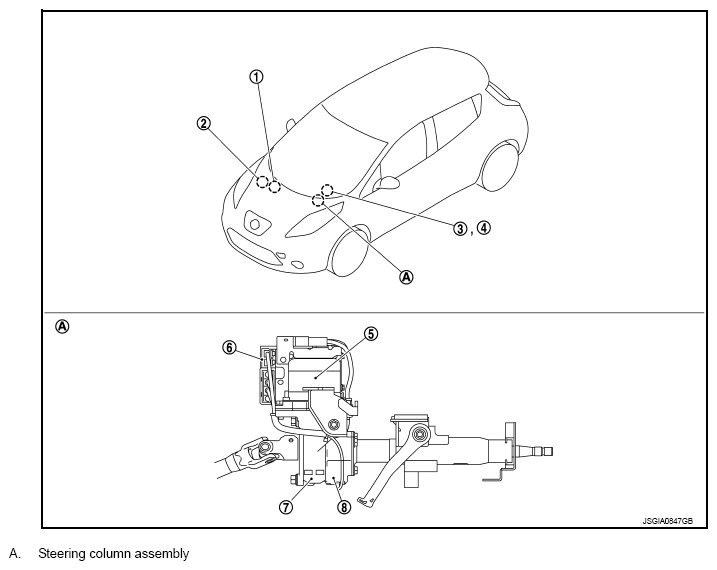

Fig 1: Identifying Steering Control System Parts Location

Courtesy of NISSAN MOTOR CO., U.S.A.

FUNCTION CHART

No.	Component	Function
1	VCM	Transmits mainly the following signals to EPS control unit via CAN communication. Power steering start activation request signal
2	ABS actuator and electric unit (control unit)	Transmits mainly the following signal to EPS control unit via CAN communication. Vehicle speed signal
3	Combination meter	Transmits mainly the following signal to EPS control unit via CAN communication. Vehicle speed signal
3	Combination meter	Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication.
4	EPS warning lamp	"EPS SYSTEM : SYSTEM DESCRIPTION "
5	EPS motor	"EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR "
6	EPS control unit	"EPS CONTROL UNIT "
7	Reduction gear	"EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR "
8	Torque sensor	"EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR "
