General Precautions

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

Never disassemble VCM and DC/DC junction box.
If the 12V battery is disconnected, the diagnostic information will be lost within 3 minutes.
When connecting or disconnecting harness connectors into or from VCM, take care not to damage pin terminals (bend or break).
Check that there are not any bends or breaks on VCM pin terminal, when connecting harness connectors.

Fig 1: Identifying Damaged Pin Terminals (Bend Or Break)
Courtesy of NISSAN MOTOR CO., U.S.A.
After performing each TROUBLE DIAGNOSIS, perform DTC confirmation procedure or Component Function Check. The DTC should not be displayed in the DTC Confirmation Procedure if the repair is completed. The Component Function Check should be a good result if the repair is completed.

Fig 2: Caution Signal For DTC Conformation
Courtesy of NISSAN MOTOR CO., U.S.A.

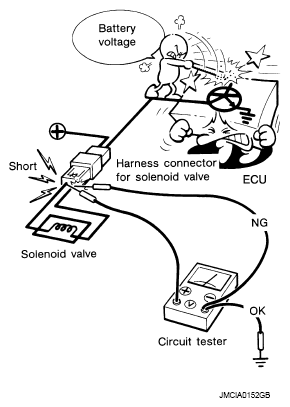

When measuring ECU signals with a circuit tester, never allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and damage the ECU power transistor.

Fig 3: Caution For Tester Probe Contacts
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing C.B. ham radio or a mobile phone, be sure to observe the following as it may adversely affect electronic control systems depending on installation location.

Keep the antenna as far as possible from the electronic control units.
Keep the antenna feeder line more than 20 cm (8 in) away from the harness of electronic controls.
Do not let them run parallel for a long distance.
Adjust the antenna and feeder line so that the standing-wave radio can be kept smaller.
Be sure to ground the radio to vehicle body.

Fig 4: Identifying C.B. Ham Radio

Courtesy of NISSAN MOTOR CO., U.S.A.
