Principle Of Operation
WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

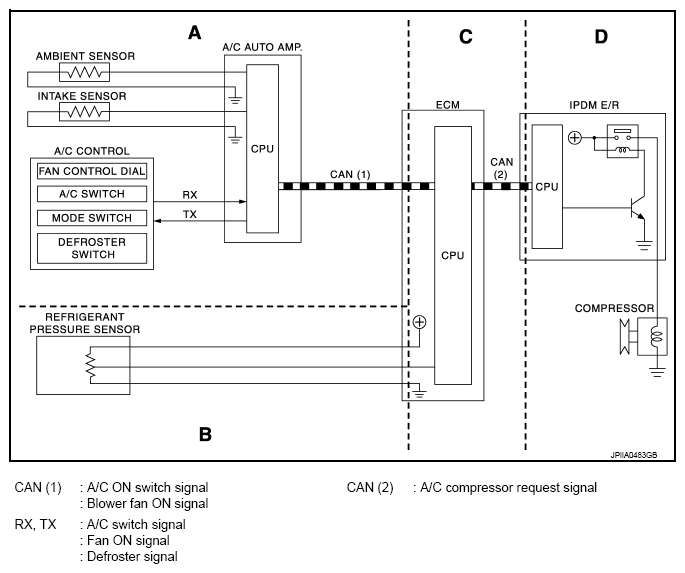

Functional circuit diagram
Functional initial inspection chart
FUNCTIONAL INITIAL INSPECTION
| Control unit | Diagnosis Item | Location | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| A/C auto amp. | "HVAC" | Self-diagnosis | x | - | - | - |
| Data monitor | x | - | - | - | ||
| Active test | x | - | - | x | ||
| ECM | "ENGINE" | Self-diagnosis (CAN system diagnosis) | - | - | x | - |
| Data monitor | - | x | x | - | ||
| IPDM E/R | "IPDM E/R" | Self-diagnosis (CAN system diagnosis) | - | - | - | x |
| Data monitor | - | - | x | - | ||
| Auto active test | - | - | - | x | ||
