Circuit Diagram: Notes

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

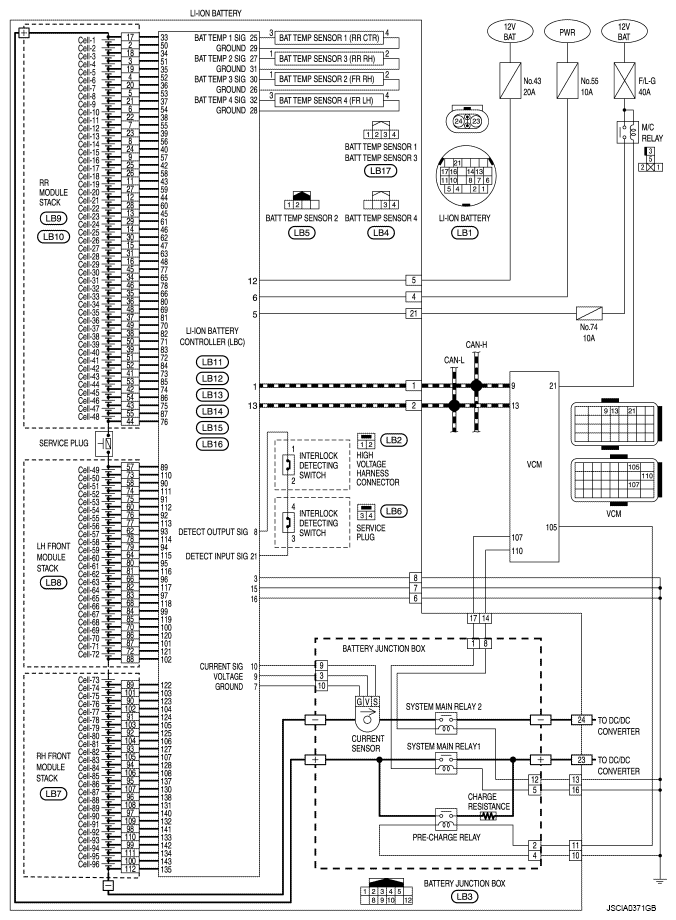

Fig 1: Li-ion Battery - Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

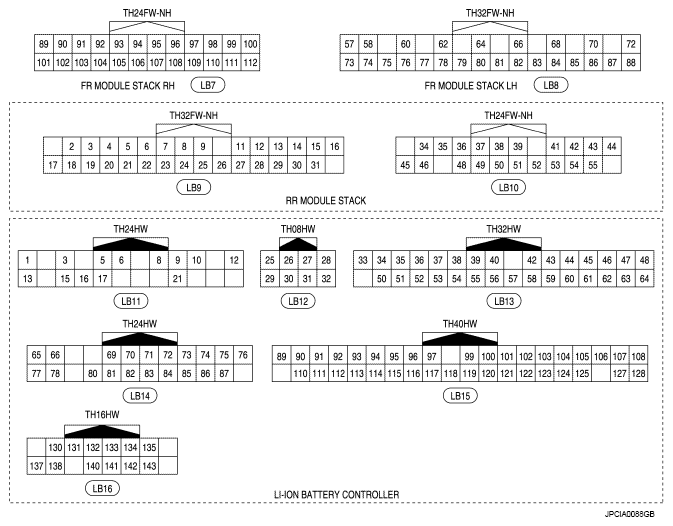

Fig 2: Identifying Li-ion Battery Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
