Exploded View

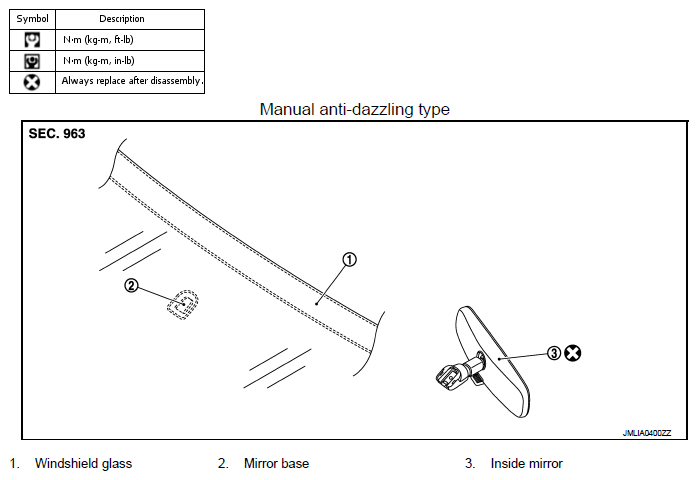

Fig 1: Removing Inside Mirror (Manual Anti-Dazzling Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.

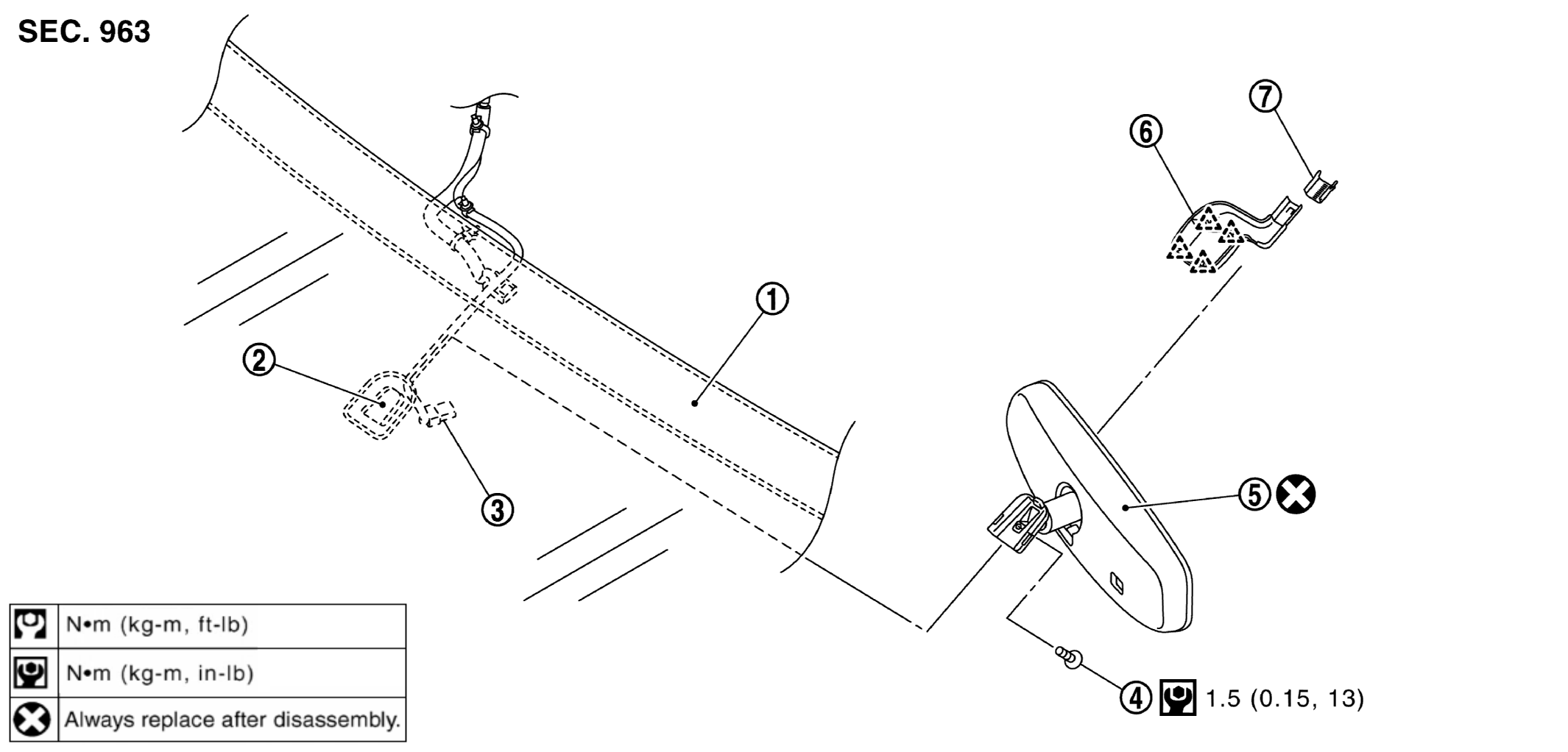

Fig 2: Removing Inside Mirror With Torque Specification (Auto Anti-Dazzling Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.
