IGNITION TIMING: Special Repair Requirement
IGNITION TIMING: Special Repair Requirement
CHECK IGNITION TIMING
Attach timing light to loop wire as shown in the figure.

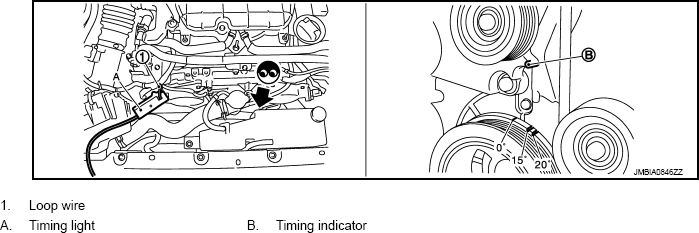

Fig 1: Identifying Attachment Of Timing Light With Loop Wire
Courtesy of NISSAN NORTH AMERICA, INC.
Check ignition timing.
INSPECTION END
