Component Parts Location

WARNING: This page is about a different variant/trim than selected.

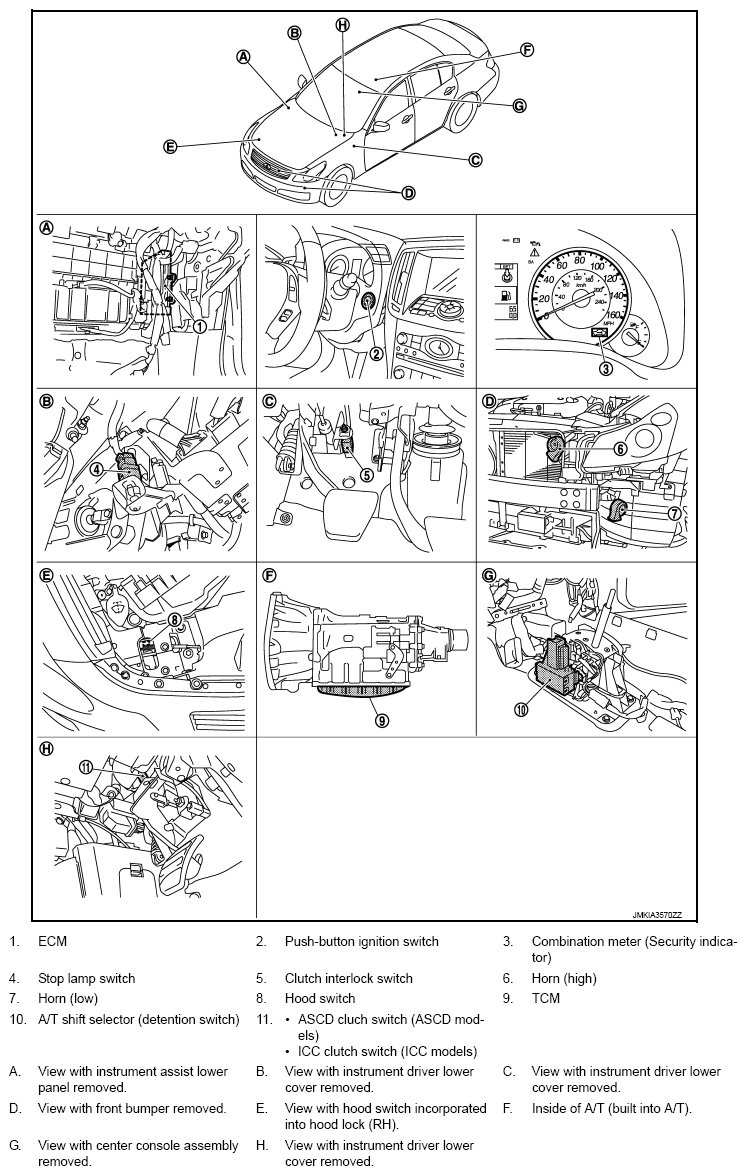

Fig 1: Intelligent Key System/Engine Start Function Component Parts Location (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Intelligent Key System/Engine Start Function Component Parts Location (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
