Component Parts Location

WARNING: This page is about a different variant/trim than selected.

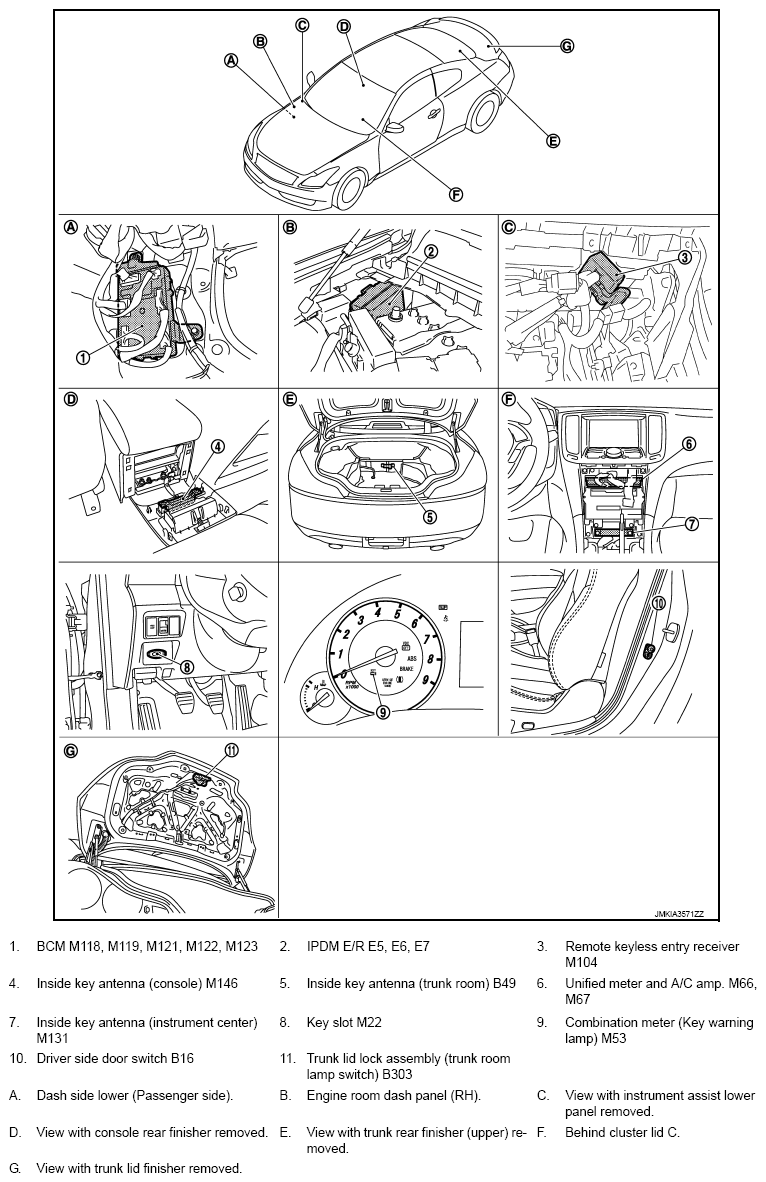

Fig 1: Vehicle Security System Components Location (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

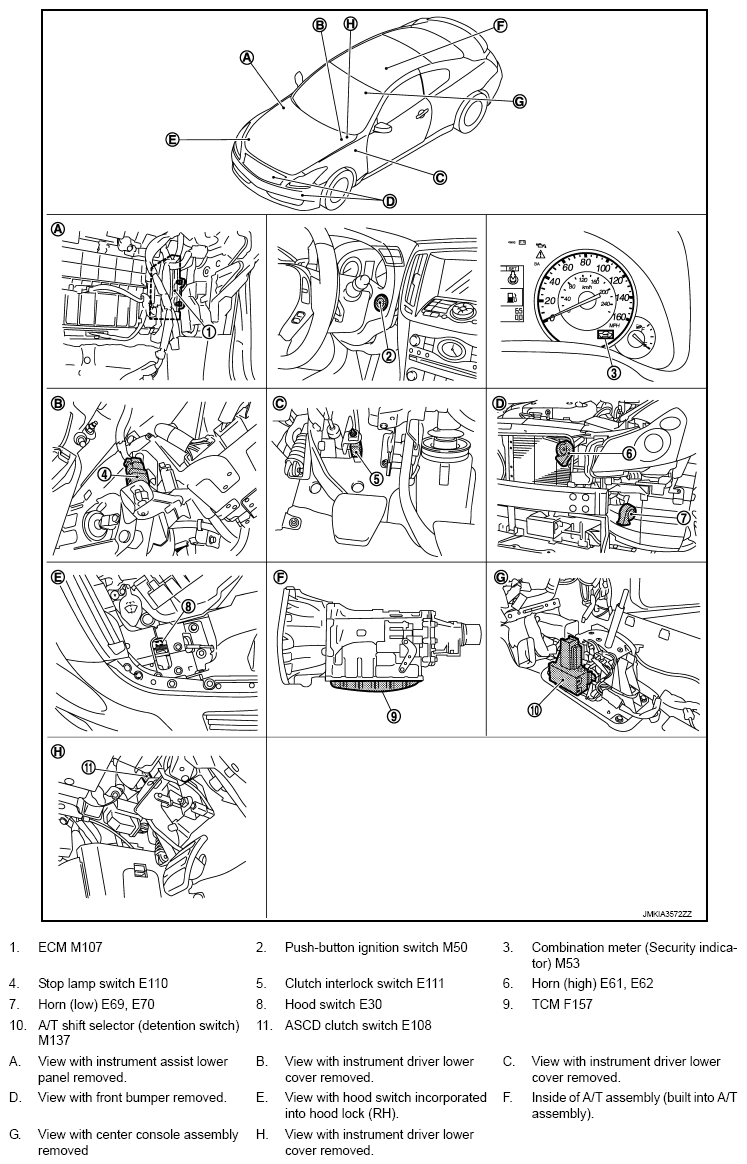

Fig 2: Vehicle Security System Components Location (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
