Exploded View

WARNING: This page is about a different variant/trim than selected.

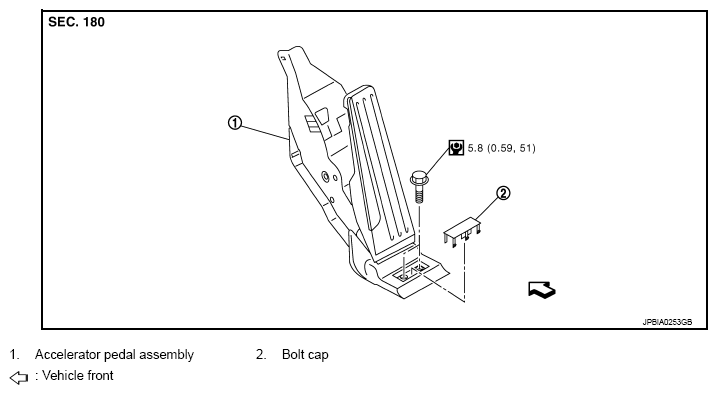

Fig 1: Accelerator Pedal Assembly & Bolt Cap With Torque Specifications

G08237573

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
