Section 45 (Instrument Panel (Coupe))
›
Removal And Installation
›
Instrument Panel Assembly
›
M/T Models
›
M/T MODELS: Exploded View
M/T MODELS: Exploded View
WARNING:
This page is about a different variant/trim than selected.

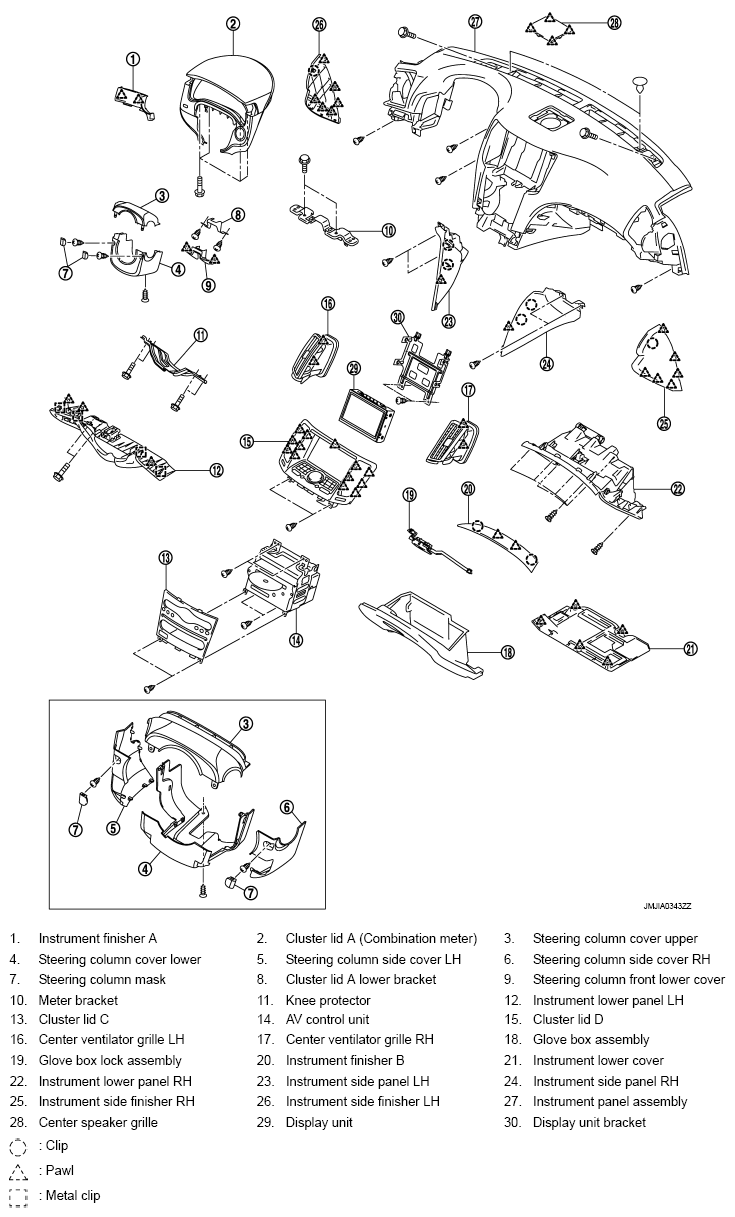

Fig 1: Exploded View Of Instrument Panel Assembly (M/T Models)
Courtesy of NISSAN NORTH AMERICA, INC.
