Cross-Sectional View
Cross-Sectional View

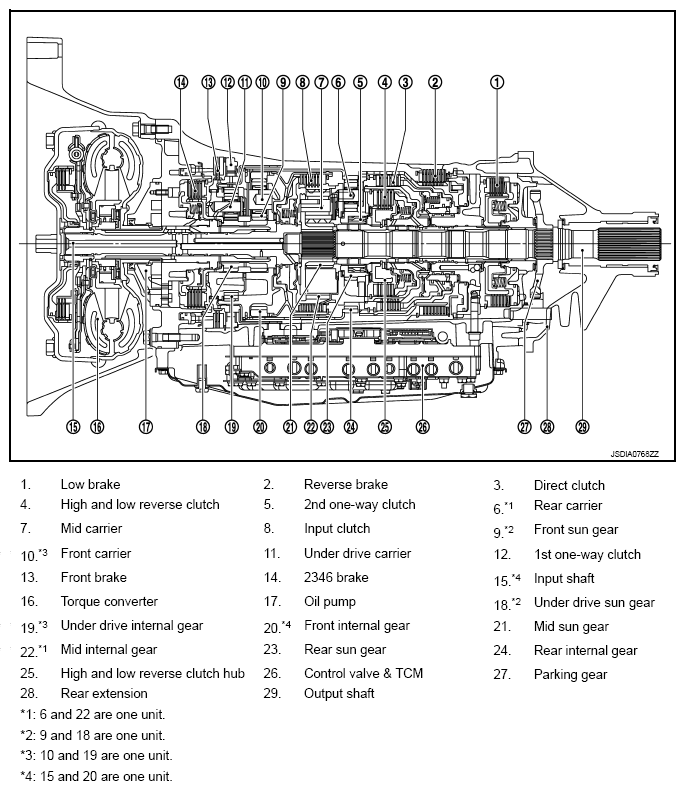

Fig 1: Identifying Cross-Sectional View Of Shift Mechanism
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
