IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to loop wire as shown in illustration below.

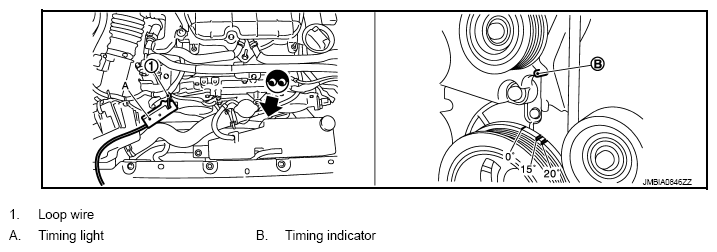

  Fig 1: Checking Ignition Timing
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  : INSPECTION END
