Li-ion Battery

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

LI-ION BATTERY SPECIFICATIONS

Items			Specification
Type			Li-ion battery
Structure			48 modules (192 cells)
Rated voltage		(v)	Approx. 360
Weight		[kg (ib)]	Approx. 300 (661.5)
Courtesy of NISSAN MOTOR CO., U.S.A.

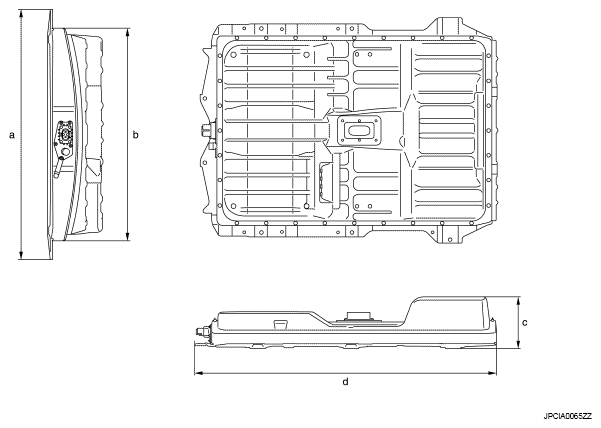

External dimension	"a"	[mm (in)]	1188.0 (46.77)
	"b"	[mm (in)]	1007.0 (39.65)
	"c"	[mm (in)]	264.9 (10.43)
	"d"	[mm (in)]	1570.5 (61.83)
